SKU: ST2.3/16DEC-RHP

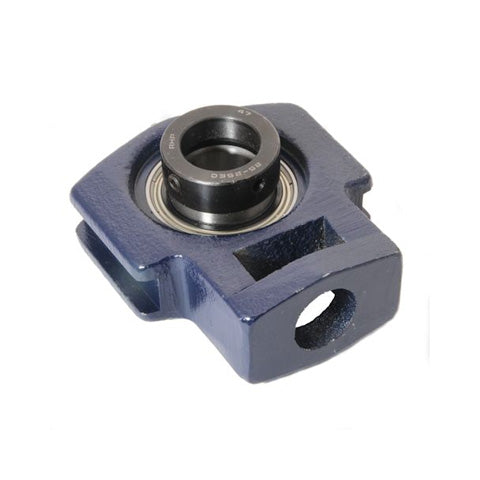

RHP ST2-3/16DEC Cast Iron Take Up Unit and 2-3/16 inch Bore Insert

RHP ST2-3/16DEC Cast Iron Take Up Unit and 2-3/16 inch Bore Insert
Regular price CHF 162.00 ex VAT
Regular price Sale price CHF 162.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 128.37
20+ CHF 121.16
30+ CHF 119.72
40+ CHF 118.27
50+ CHF 116.83
75+ CHF 115.39
100+ CHF 108.18
200+ CHF 106.73
250+ CHF 105.29
500+ CHF 103.85
1000+ CHF 100.96
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-3/16 inch
L 7.165 inch
L1 4.488 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16DECG+insonly">1055-2-3/16DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
