SKU: ST2.7/8-RHP

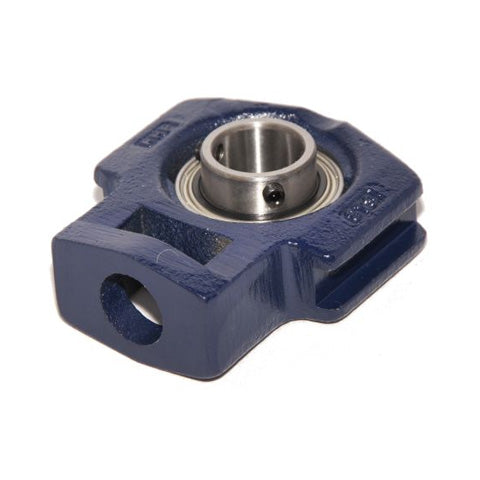

RHP ST2-7/8 Cast Iron Take Up Unit and 2-7/8 inch Bore Insert
RHP ST2-7/8 Cast Iron Take Up Unit and 2-7/8 inch Bore Insert
Regular price
CHF 305.20
ex VAT
Regular price
Sale price
CHF 305.20
ex VAT
In stock
Price Break
10+
CHF 271.63
19+
CHF 256.37
29+
CHF 253.32
39+
CHF 250.26
49+
CHF 247.21
74+
CHF 244.16
99+
CHF 228.90
199+
CHF 225.85
249+
CHF 222.80
499+
CHF 219.74
999+
CHF 213.64
Couldn't load pickup availability
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- ST
Technical
Technical
| Bore | 2-7/8 inch |
|---|---|
| L | 8.76 inch |
| L1 | 5.413 inch |
| L2 | 0.846 inch |
| L3 | 1.26 inch |
| L4 | 4.744 inch |
| L5 | 3.031 inch |
| H | 6.555 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 5.937 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 1.988 inch |
| A2 | 1.063 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
