SKU: ST25DEC-RHP

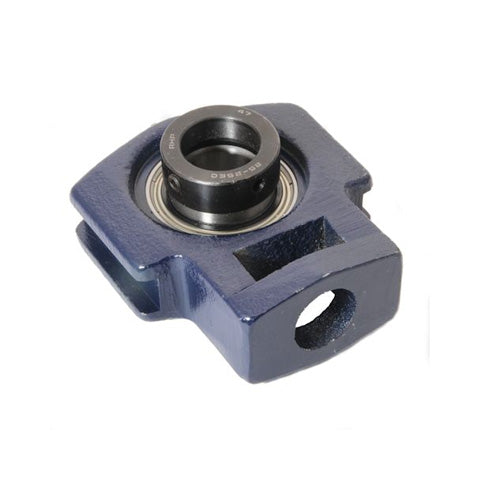

RHP ST25DEC Cast Iron Take Up Unit and 25mm Bore Insert
RHP ST25DEC Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
CHF 57.00
ex VAT
Regular price
Sale price
CHF 57.00
ex VAT
In stock
Price Break
10+
CHF 45.28
20+
CHF 42.73
30+
CHF 42.22
40+
CHF 41.72
50+
CHF 41.21
75+
CHF 40.70
100+
CHF 38.16
200+
CHF 37.65
250+
CHF 37.14
500+
CHF 36.63
1000+
CHF 35.61
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- ST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 98mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
