SKU: ST25EC-RHP

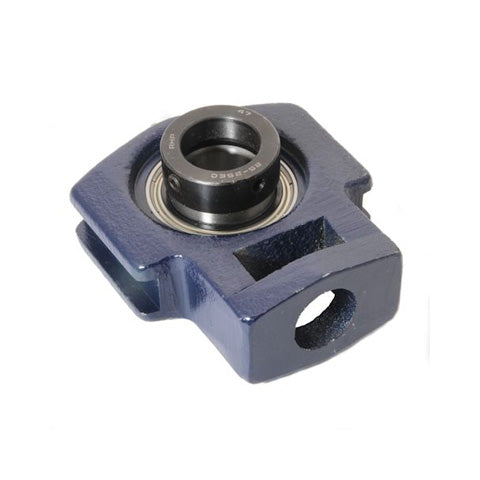

RHP ST25EC Cast Iron Take Up Unit and 25mm Bore Insert
RHP ST25EC Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
CHF 51.81
ex VAT
Regular price
Sale price
CHF 51.81
ex VAT
In stock
Price Break
10+
CHF 46.11
19+
CHF 43.52
29+
CHF 43.00
39+
CHF 42.48
49+
CHF 41.97
74+
CHF 41.45
99+
CHF 38.86
199+
CHF 38.34
249+
CHF 37.82
499+
CHF 37.30
999+
CHF 36.27
Couldn't load pickup availability
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- ST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 98mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
