SKU: ST2DEC-RHP

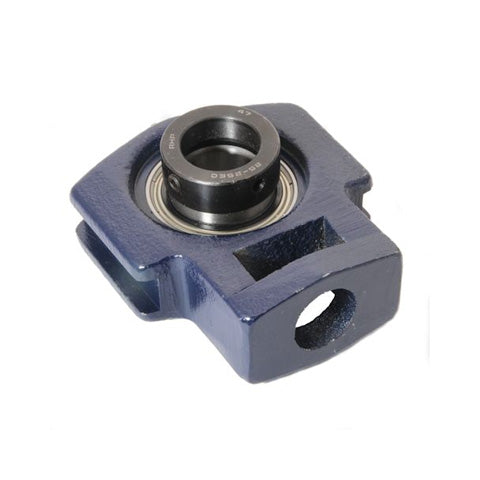

RHP ST2DEC Cast Iron Take Up Unit and 2 inch Bore Insert

RHP ST2DEC Cast Iron Take Up Unit and 2 inch Bore Insert
Regular price CHF 164.00 ex VAT
Regular price Sale price CHF 164.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 130.54
20+ CHF 123.21
30+ CHF 121.74
40+ CHF 120.27
50+ CHF 118.81
75+ CHF 117.34
100+ CHF 110.01
200+ CHF 108.54
250+ CHF 107.07
500+ CHF 105.61
1000+ CHF 102.67
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2 inch
L 7.165 inch
L1 4.488 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
