SKU: ST3/4DEC-RHP

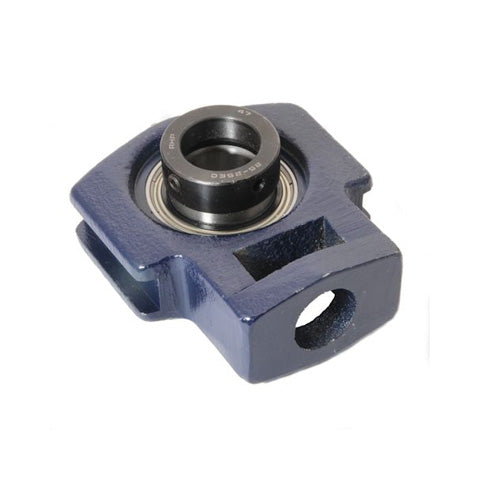

RHP ST3/4DEC Cast Iron Take Up Unit and 3/4 inch Bore Insert

RHP ST3/4DEC Cast Iron Take Up Unit and 3/4 inch Bore Insert
Regular price CHF 54.00 ex VAT
Regular price Sale price CHF 54.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 42.55
20+ CHF 40.16
30+ CHF 39.68
40+ CHF 39.20
50+ CHF 38.73
75+ CHF 38.25
100+ CHF 35.86
200+ CHF 35.38
250+ CHF 34.90
500+ CHF 34.42
1000+ CHF 33.47
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3/4 inch
L 3.76 inch
L1 2.441 inch
L2 0.453 inch
L3 0.63 inch
L4 1.988 inch
L5 1.437 inch
H 3.484 inch
H1 2.303 inch
H2 1.26 inch
H3 2.992 inch
N 0.886 inch
A 1.417 inch
A1 1.083 inch
A2 0.531 inch
B3 1.717 inch
s2 0.674 inch
d2 1.311 inch
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
