SKU: ST45DEC-RHP

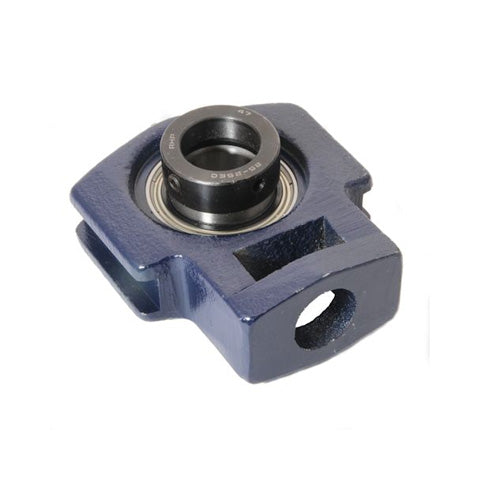

RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert
RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert
Regular price
CHF 109.65
ex VAT
Regular price
Sale price
CHF 109.65
ex VAT
In stock
Price Break
10+
CHF 97.59
19+
CHF 92.11
29+
CHF 91.01
39+
CHF 89.91
49+
CHF 88.82
74+
CHF 87.72
99+
CHF 82.24
199+
CHF 81.14
249+
CHF 80.04
499+
CHF 78.95
999+
CHF 76.76
Couldn't load pickup availability
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- ST
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 147mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
