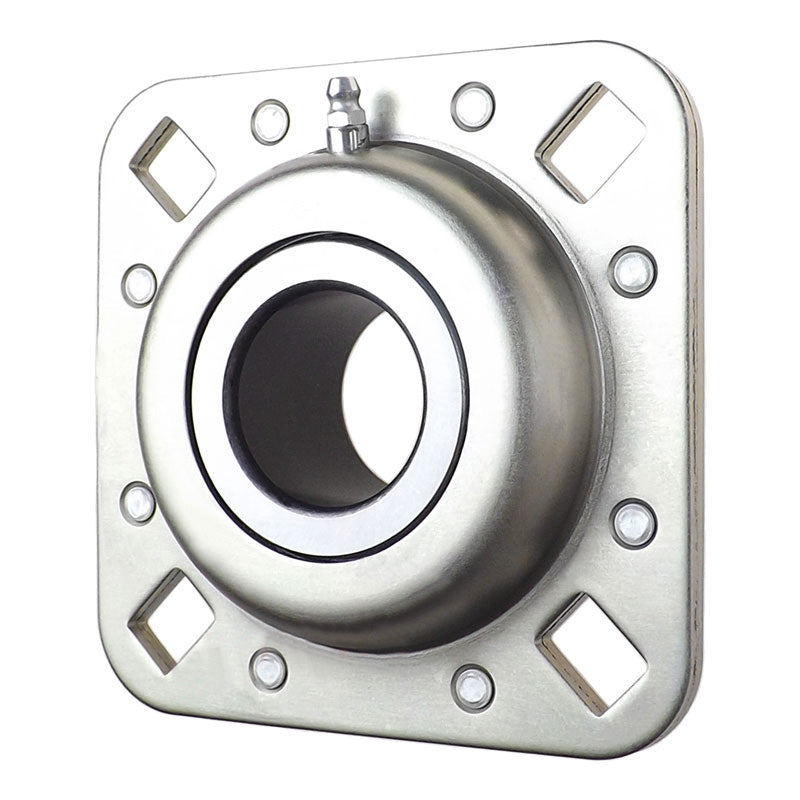

PEER ST491B Seedbed Finisher Round Bore Relubricatable Flanged Disc with Bolt Slots 1.535x5x1.6845 inch

Seedbed Finisher
Application conditions:

• Utilizes two bearing assemblies
• High misalignment from imprecise mounting and wide bearing spread attachments can generate severe stress on the internal components
• Exposed directly into the flow of soil and crop residue

• Directly interchangeable industry standard units
• Static misalignment capability accommodates imprecise mounting surfaces

• Dynamic misalignment capability eliminates internal bearing damage and housing wear
• Shock load protection due to thick riveted steel housings
• Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:

PEER - High Quality

Inside Diameter:

38.99mm = 1.535 inch

Outside Diameter:

127mm = 5 inch

Width:

42.78mm = 1.684 inch
