SKU: ST50DEC-RHP

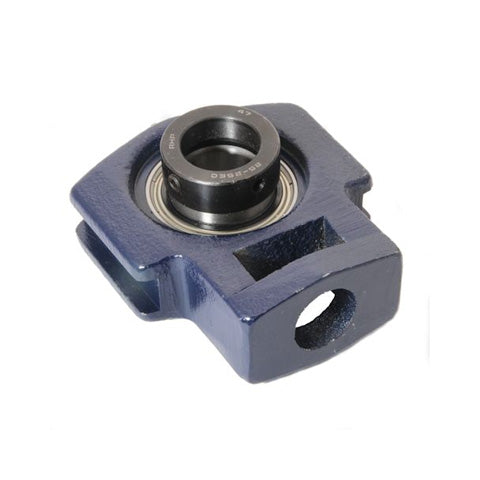

RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
CHF 118.86
ex VAT
Regular price
Sale price
CHF 118.86
ex VAT
In stock
Price Break
10+
CHF 105.79
19+
CHF 99.84
29+
CHF 98.65
39+
CHF 97.47
49+
CHF 96.28
74+
CHF 95.09
99+
CHF 89.15
199+
CHF 87.96
249+
CHF 86.77
499+
CHF 85.58
999+
CHF 83.20
Couldn't load pickup availability
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- ST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 151mm |
| L1 | 90.5mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B3 | 62.7mm |
| s2 | 24.65mm |
| d2 | 69.85mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
