SKU: ST55-RHP

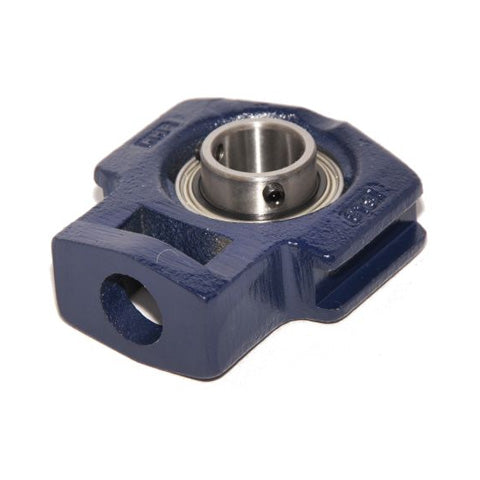

RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert
RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert
Regular price
CHF 135.54
ex VAT
Regular price
Sale price
CHF 135.54
ex VAT
In stock
Price Break
10+
CHF 120.63
19+
CHF 113.85
29+
CHF 112.50
39+
CHF 111.14
49+
CHF 109.79
74+
CHF 108.43
99+
CHF 101.66
199+
CHF 100.30
249+
CHF 98.94
499+
CHF 97.59
999+
CHF 94.88
Couldn't load pickup availability
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- ST
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
