SKU: ST55DEC-RHP

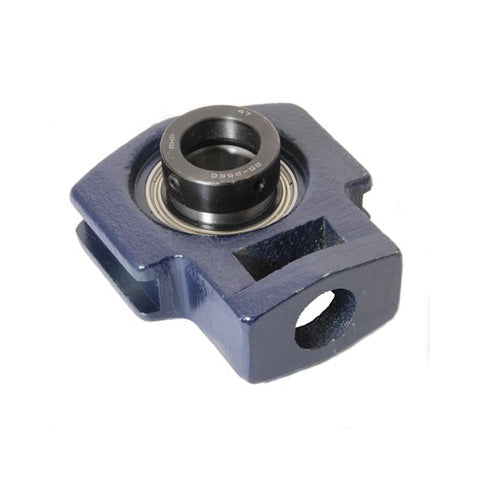

RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
Regular price
CHF 152.52
ex VAT
Regular price
Sale price
CHF 152.52
ex VAT
In stock
Price Break
10+
CHF 135.74
19+
CHF 128.12
29+
CHF 126.59
39+
CHF 125.07
49+
CHF 123.54
74+
CHF 122.02
99+
CHF 114.39
199+
CHF 112.86
249+
CHF 111.34
499+
CHF 109.81
999+
CHF 106.76
Couldn't load pickup availability
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- ST
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
