SKU: ST60DEC-RHP

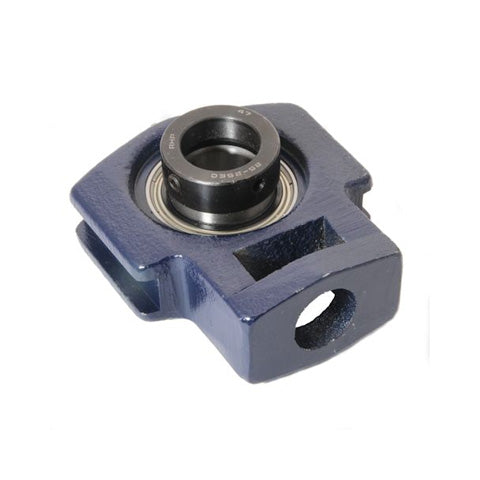

RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert
RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert
Regular price
CHF 189.00
ex VAT
Regular price
Sale price
CHF 189.00
ex VAT
In stock
Price Break
10+
CHF 150.35
20+
CHF 141.90
30+
CHF 140.22
40+
CHF 138.53
50+
CHF 136.84
75+
CHF 135.15
100+
CHF 126.70
200+
CHF 125.01
250+
CHF 123.32
500+
CHF 121.63
1000+
CHF 118.25
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- ST

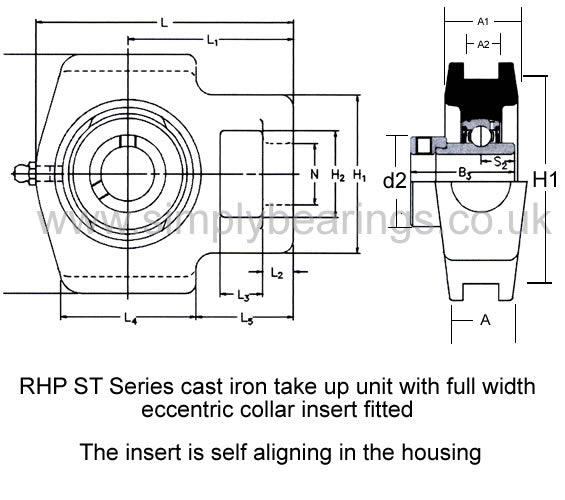

Technical
Technical
| Bore | 60mm |
|---|---|
| L | 192mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
