SKU: STO35-MB
Major Brand STO35 Support Roller Without Axial Guidance With Inner Sleeve 35x72x19.8mm
Major Brand STO35 Support Roller Without Axial Guidance With Inner Sleeve 35x72x19.8mm
Regular price
CHF 109.00
ex VAT
Regular price
Sale price
CHF 109.00
ex VAT
In stock
Price Break
10+
CHF 86.83
19+
CHF 81.95
29+
CHF 80.97
39+
CHF 80.00
49+
CHF 79.02
74+
CHF 78.05
99+
CHF 73.17
199+
CHF 72.19
249+
CHF 71.22
499+
CHF 70.24
999+
CHF 68.29
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 19.8mm
Technical
Technical

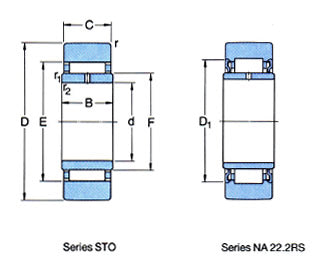

| d | 35mm |
|---|---|
| D | 72mm |
| C | 19.8mm |
| B | 20mm |
| F | 42mm |
| E | 50mm |
| r min | 0.6mm |
| r1r2 min | 0.6mm |
| Speed rating | 1100 rpm |
| Dynamic load | 25500 N |
| Basic static load | 40500 N |
| Fatigue load limit Pu | 5000 N |
| Max radial dynamic force | 36000 N |
| Max radial static force | 51000 N |
| Weight | 440 g |
