SKU: SU005

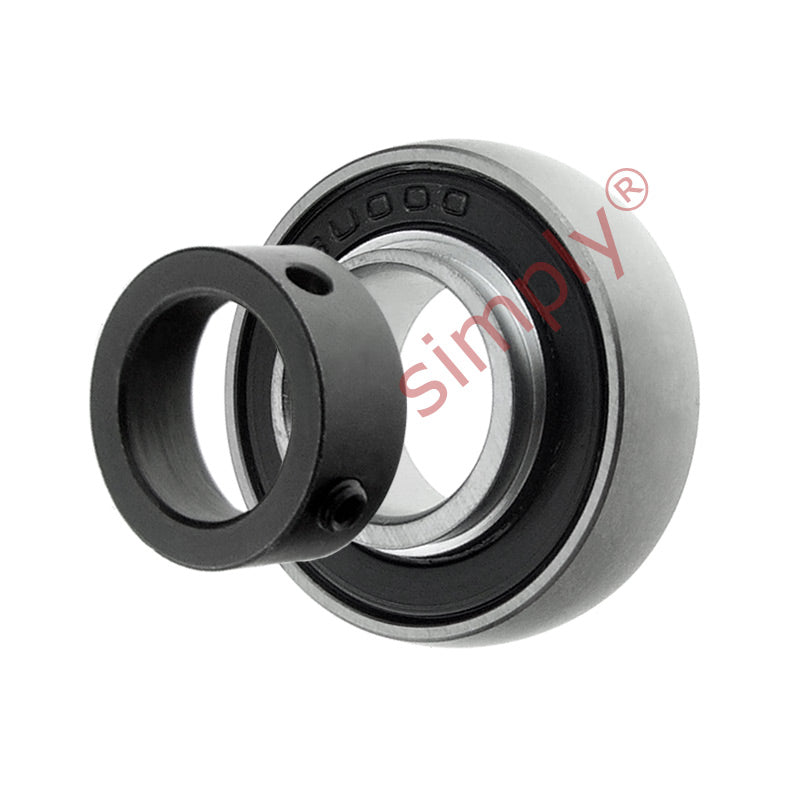

SU005 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 25mm Bore 47mm Outside Diameter
SU005 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 25mm Bore 47mm Outside Diameter
Regular price
CHF 21.57
ex VAT
Regular price
Sale price
CHF 21.57
ex VAT
In stock
Price Break
10+
CHF 19.20
19+
CHF 18.12
29+
CHF 17.90
39+
CHF 17.69
49+
CHF 17.47
74+
CHF 17.26
99+
CHF 16.18
199+
CHF 15.96
249+
CHF 15.75
499+
CHF 15.53
999+
CHF 15.10
Couldn't load pickup availability
Description
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Style:
- SU
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| L | 25.5mm |
| Bi | 17.5mm |
| Be | 12mm |
| r | 1mm |
| n | 6mm |
| B3 | 12mm |
| d1 | 36mm |
| A | 5mm |
| ds | M5x0.8 |
| Dynamic load | 1030 N ~ 105.031 kgf |
| Static load | 595 N ~ 60.673 kgf |
| Weight | 0.15 kg |
