SKU: SUCF.PL.210

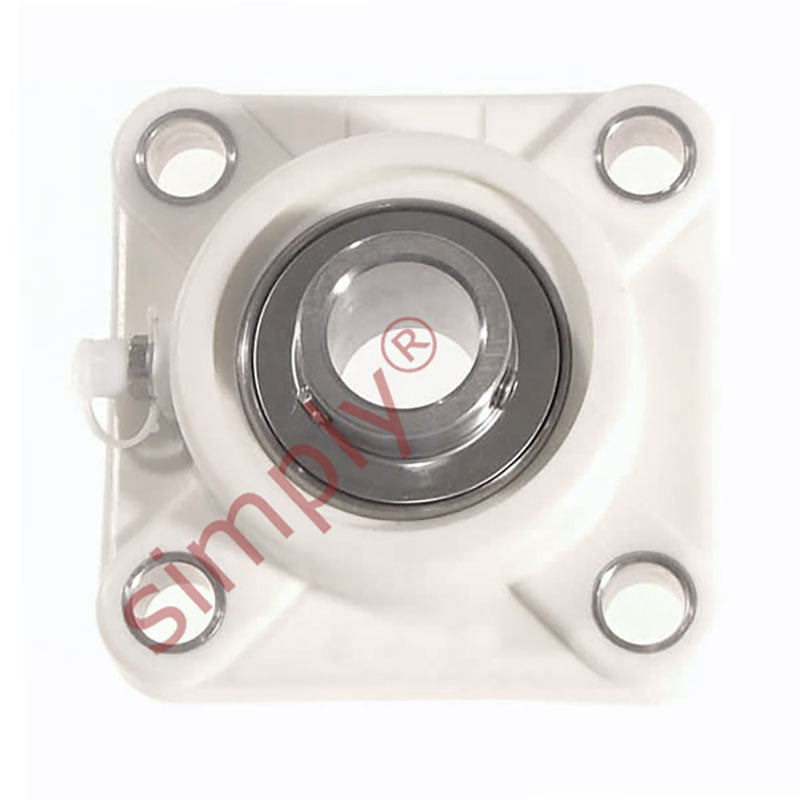

SUCFPL210 Metric Four Bolt Square Thermo Plastic Flange Housing with 50mm Bore Stainless Insert
SUCFPL210 Metric Four Bolt Square Thermo Plastic Flange Housing with 50mm Bore Stainless Insert
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
Equivalent to: PSF50CR
In stock
Price Break
3+
CHF 22.83
4+
CHF 21.55
9+
CHF 21.29
19+
CHF 21.03
49+
CHF 20.78
99+
CHF 20.52
499+
CHF 19.24
999+
CHF 18.98
1999+
CHF 18.72
2999+
CHF 18.47
4999+
CHF 17.96
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PSF50CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 143mm |
| e | 111mm |
| i | 22mm |
| g | 18mm |
| L | 40mm |
| S | 16mm |
| Z | 54.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt | 16mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 3400 rpm |
