SKU: SUCFBL205FG1-SNR

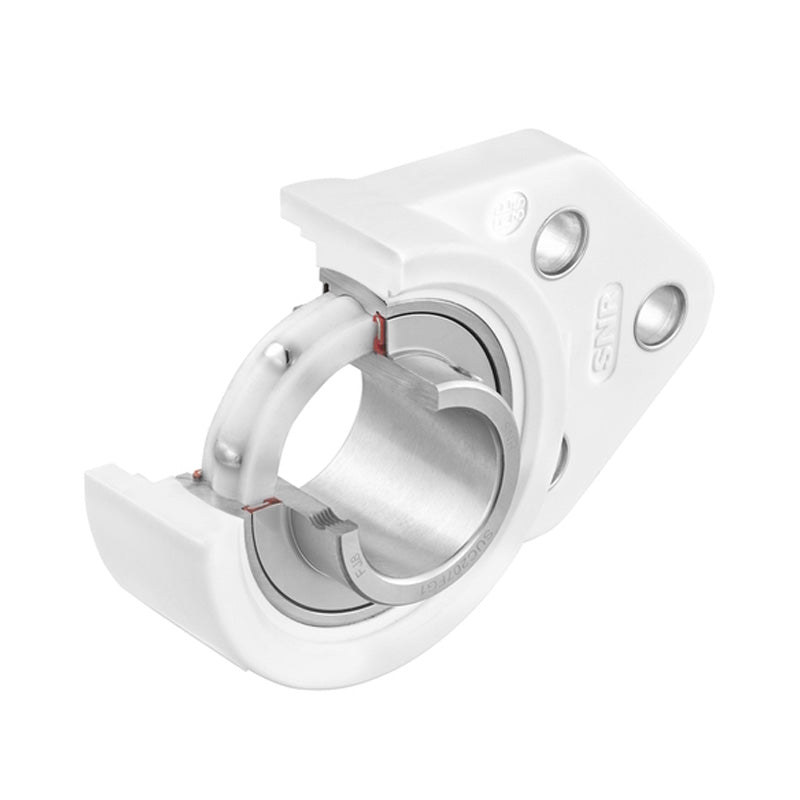

SNR SUCFBL205FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days

SNR SUCFBL205FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price CHF 149.00 ex VAT
Regular price Sale price CHF 149.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 131.58
4+ CHF 126.26
9+ CHF 123.61
19+ CHF 119.62
49+ CHF 116.96
99+ CHF 110.32
499+ CHF 93.04
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 25mm
A - Housing height 34mm
A1 - Housing foot height / flange height 11.4mm
A2 - Total height from mounting surface 41.6mm
B - Width of Inner Ring 34.1mm
d - Shaft diameter 25mm
e - Distance mounting surface to bearing centre 21.8mm
H - Housing length, width or diameter 120.6mm
H1 - Distance housing side to centre of bearing insert 85.7mm
J - Mounting holes distance 41.3mm
J3 - Distance mounting hole to bearing centre 46mm
J4 - Mounting hole distance 28.6mm
L - Housing width / diameter 70mm
L2 - Housing flange width 63.5mm
N - Mounting hole dimension 10.7mm
S - Distance front side/bearing centre 14.3mm
C - Dynamic load rating 14 kN
C0 - Static load rating 7.8 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.3kg
Recommended tightening torque for set screw 3.9 Nm
