SKU: SUCP.PL.204-12

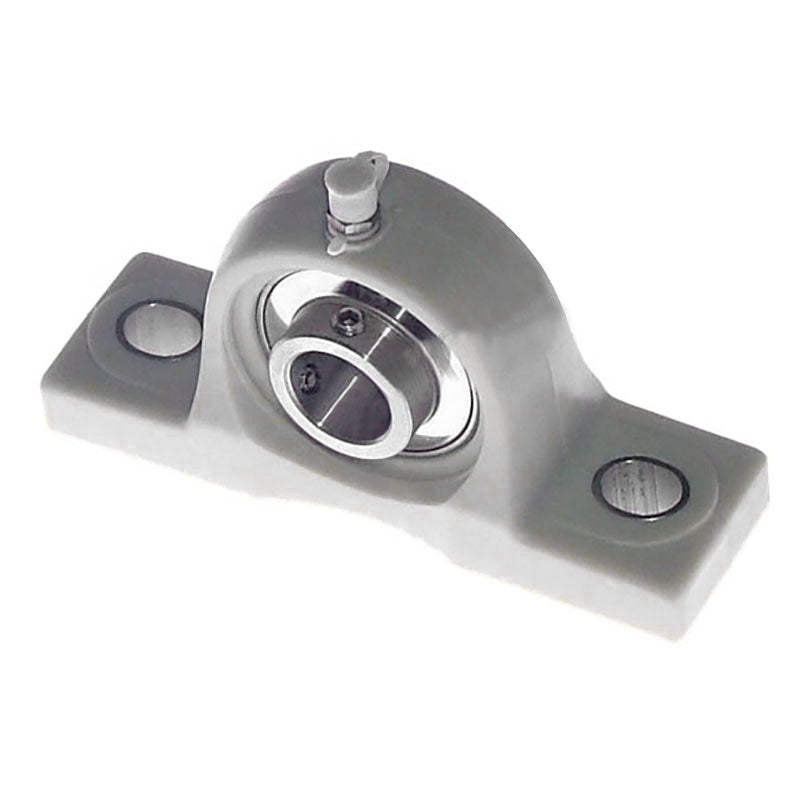

SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: PNP3/4CR
In stock
Price Break
3+
CHF 16.63
4+
CHF 15.70
9+
CHF 15.51
19+
CHF 15.32
49+
CHF 15.14
99+
CHF 14.95
499+
CHF 14.01
999+
CHF 13.83
1999+
CHF 13.64
2999+
CHF 13.45
4999+
CHF 13.08
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP3/4CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| h | 33.3mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 7450 rpm |
