SKU: SUCP.PL.207

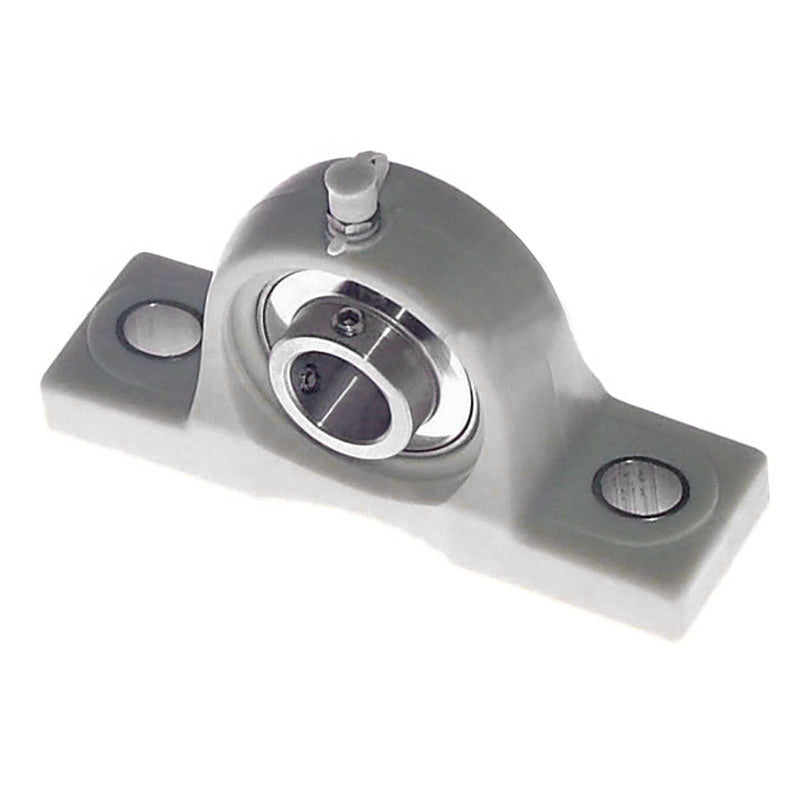

SUCPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
SUCPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Equivalent to: PNP35CR
In stock
Price Break
3+
CHF 30.47
4+
CHF 28.76
9+
CHF 28.42
19+
CHF 28.08
49+
CHF 27.73
99+
CHF 27.39
499+
CHF 25.68
999+
CHF 25.34
1999+
CHF 25.00
2999+
CHF 24.65
4999+
CHF 23.97
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP35CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 47.6mm |
| a | 167mm |
| e | 126mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 92mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.6 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4500 rpm |
