SKU: SUCP.PL.208-24

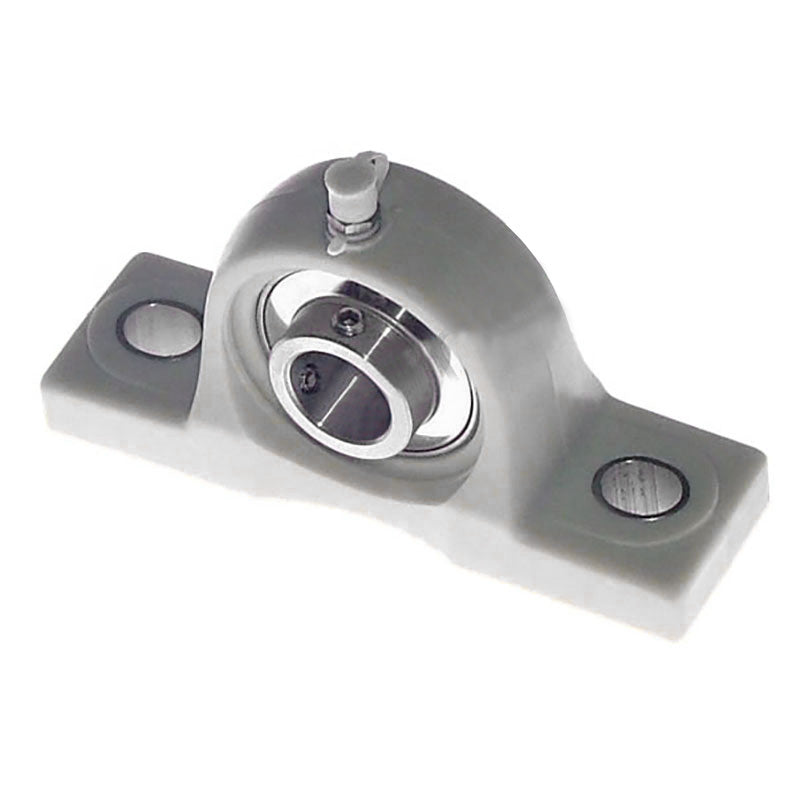

SUCPPL208-24 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
SUCPPL208-24 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
Equivalent to: PNP1.1/2CR
In stock
Price Break
3+
CHF 37.56
4+
CHF 35.45
9+
CHF 35.03
19+
CHF 34.61
49+
CHF 34.19
99+
CHF 33.77
499+
CHF 31.66
999+
CHF 31.23
1999+
CHF 30.81
2999+
CHF 30.39
4999+
CHF 29.55
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP1.1/2CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 136mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| h | 49.2mm |
| a | 184mm |
| e | 136mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 98mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4000 rpm |
