SKU: SUCP.PL.210

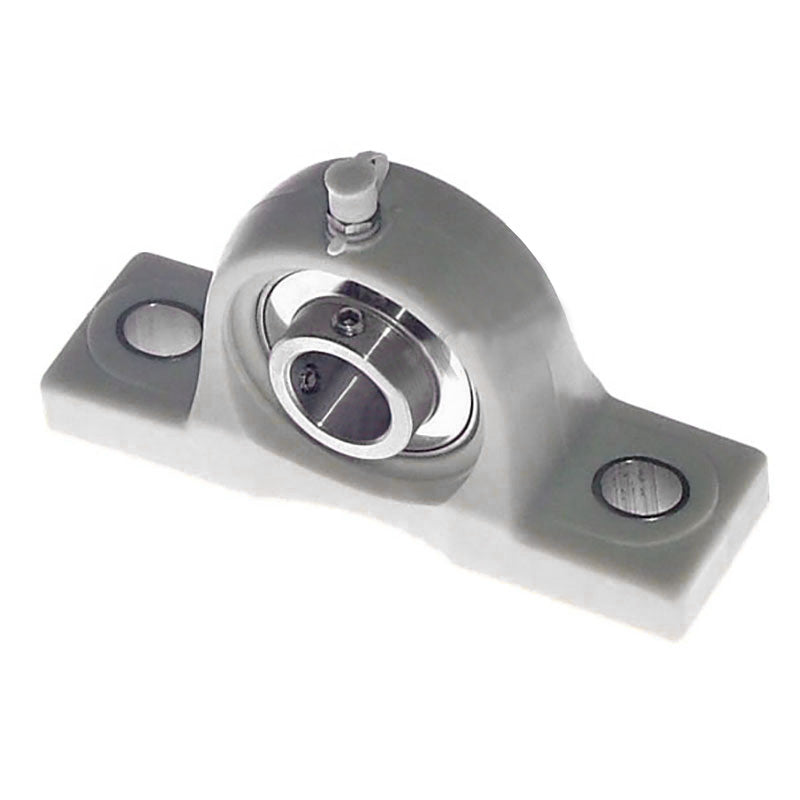

SUCPPL210 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
SUCPPL210 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
Equivalent to: PNP50CR
In stock
Price Break
3+
CHF 47.76
4+
CHF 45.07
9+
CHF 44.54
19+
CHF 44.00
49+
CHF 43.46
99+
CHF 42.93
499+
CHF 40.25
999+
CHF 39.71
1999+
CHF 39.17
2999+
CHF 38.64
4999+
CHF 37.56
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP50CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 57.2mm |
| a | 206mm |
| e | 159mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 112mm |
| B1 | 51.6mm |
| n | 19mm |
| Bolt | 16mm |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 3400 rpm |
