SKU: SUCP.PL.212

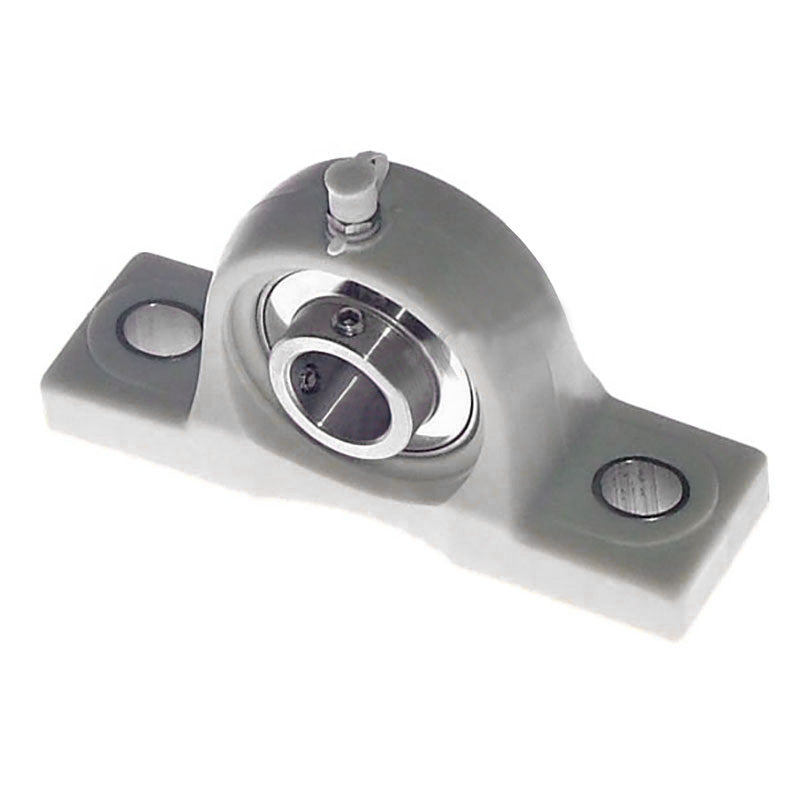

SUCPPL212 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
SUCPPL212 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
Regular price
CHF 151.00
ex VAT
Regular price
Sale price
CHF 151.00
ex VAT
Equivalent to: PNP60CR
In stock
Price Break
3+
CHF 120.06
4+
CHF 113.31
9+
CHF 111.96
19+
CHF 110.61
49+
CHF 109.27
99+
CHF 107.92
499+
CHF 101.17
999+
CHF 99.82
1999+
CHF 98.47
2999+
CHF 97.12
4999+
CHF 94.43
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP60CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 69.8mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 25mm |
| w | 137mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt | 16mm |
| Weight | 4.8 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 2800 rpm |
