• SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
1 1

SKU: SUCT.PL.207

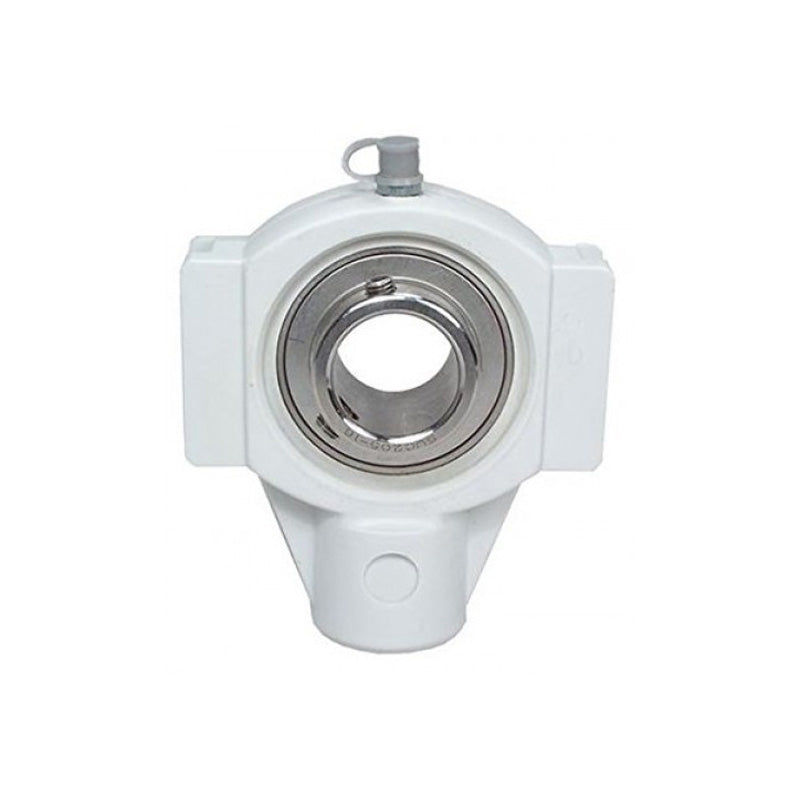

SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert

SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
CHF 40.00 ex VAT
CHF 40.00 ex VAT
Sale Sold out

Equivalent to: PST35CR

In stock

Price Break
3+ CHF 31.69
4+ CHF 29.91
9+ CHF 29.56
19+ CHF 29.20
49+ CHF 28.84
99+ CHF 28.49
499+ CHF 26.71
999+ CHF 26.35
1999+ CHF 26.00
2999+ CHF 25.64
4999+ CHF 24.93
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.

Equivalent: PST35CR
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Temperature Range:
-35 to 102 deg C
Style:
SUCT
Technical
d 35mm
a 125mm
c 34.5mm
d 12mm
h 76mm
m 89mm
s M16
t 40mm
v 102mm
w 63mm
B 42.9mm
n 17.5mm
Weight 1.3 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4500 rpm
