SKU: SUCT.PL.210

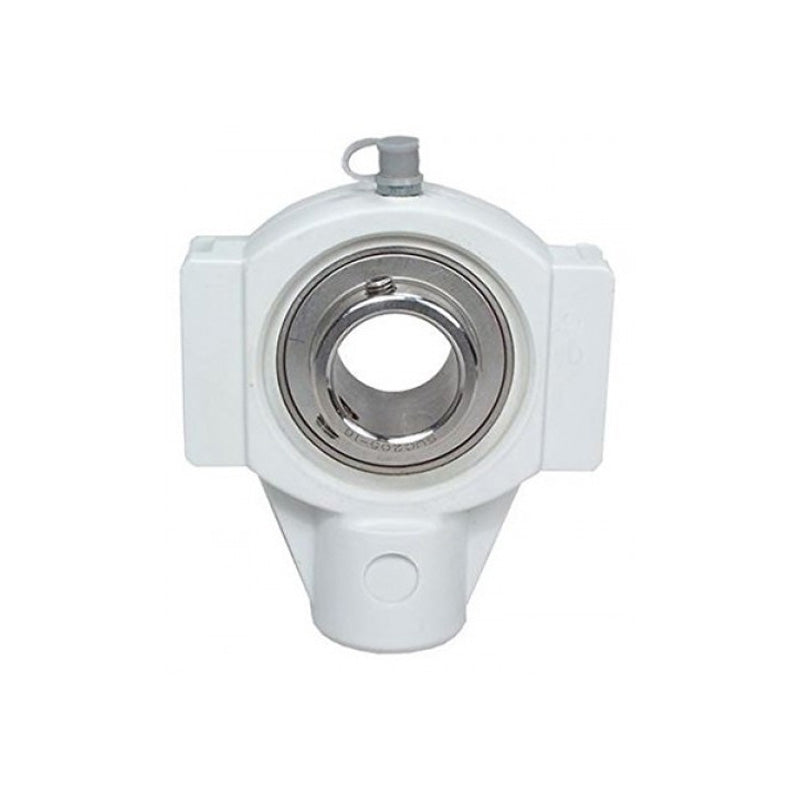

SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
Equivalent to: PST50CR
In stock
Price Break
3+
CHF 42.33
4+
CHF 39.95
9+
CHF 39.47
19+
CHF 39.00
49+
CHF 38.52
99+
CHF 38.05
499+
CHF 35.67
999+
CHF 35.19
1999+
CHF 34.72
2999+
CHF 34.24
4999+
CHF 33.29
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST50CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 50mm |
|---|---|
| a | 149mm |
| c | 40mm |
| d | 16mm |
| h | 90mm |
| m | 102mm |
| s | M20 |
| t | 50mm |
| v | 117mm |
| w | 85mm |
| B | 51.6mm |
| n | 19mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 3400 rpm |
