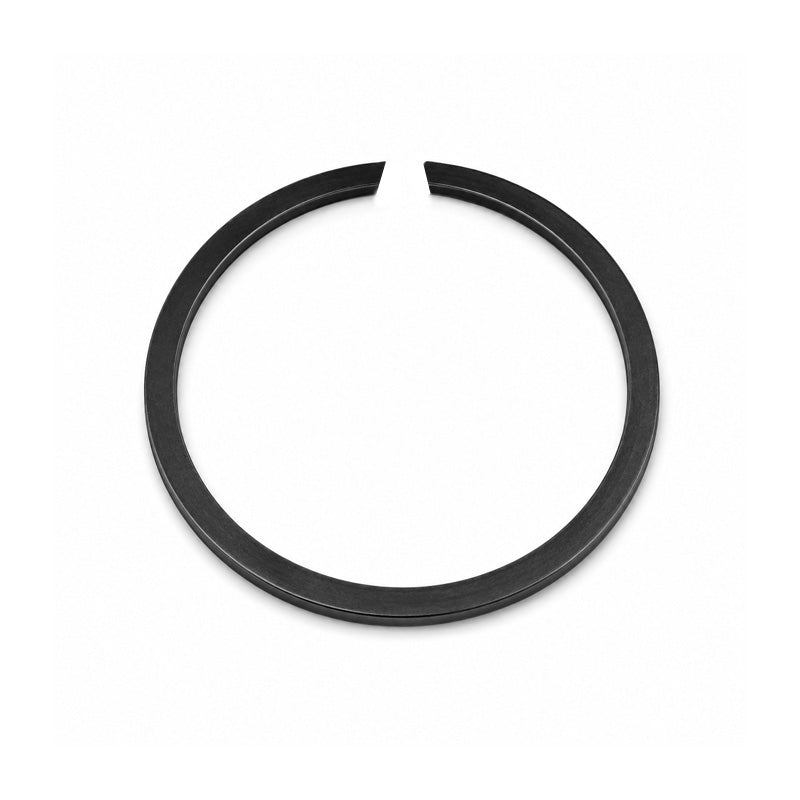

• SW100 Snap Ring to Suit 100mm Shaft
1 1

SKU: SW100-M2400

SW100 Snap Ring to Suit 100mm Shaft

SW100 Snap Ring to Suit 100mm Shaft
CHF 2.00 ex VAT
CHF 2.00 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS100 CFS-100 2400-100 SW100 SW-100 M2400-100

In stock

Price Break
5+ CHF 1.17
10+ CHF 1.00
20+ CHF 0.92
50+ CHF 0.84
100+ CHF 0.67
500+ CHF 0.58
1000+ CHF 0.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS100 CFS-100 2400-100 SW100 SW-100 M2400-100
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
97mm
Shaft Size:
100mm
Technical
d1 100mm
s 2.5mm (Tolerance -0.1)
b 3.4mm (Tolerance -0.1)
d3 max. 97mm
d2 98mm (Tolerance - 0.22)
m min. 2.7mm
FN 51.9 kN
FR 57.3 kN
n det x1000 2 rpm
