SKU: SW20-M2400

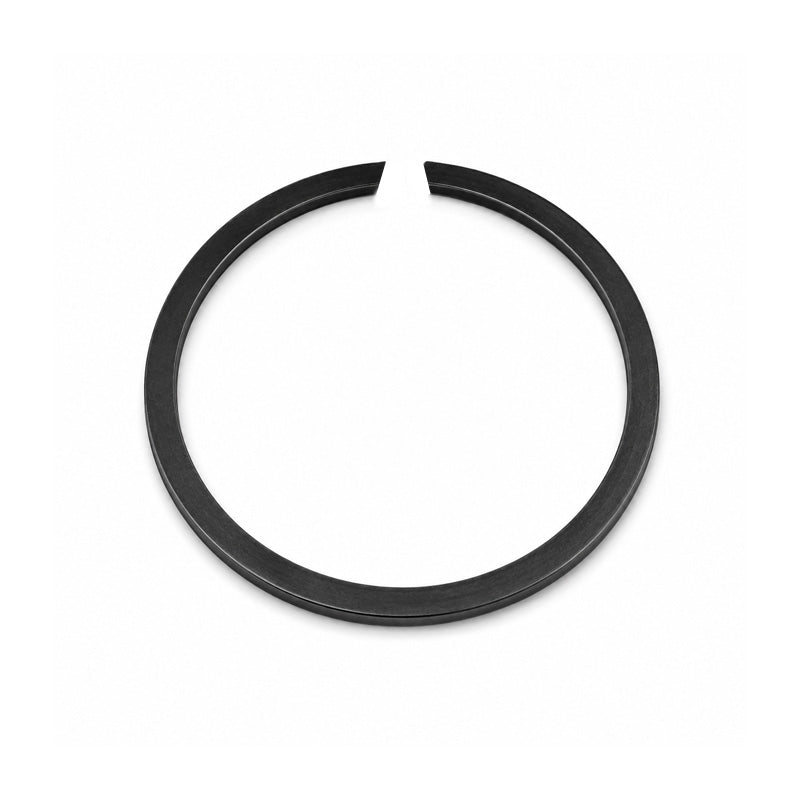

SW20 Snap Ring to Suit 20mm Shaft
SW20 Snap Ring to Suit 20mm Shaft
Regular price
CHF 1.00
ex VAT
Regular price
Sale price
CHF 1.00
ex VAT
Equivalent to: DIN5417 DIN 5417 CFS20 CFS-20 2400-20 SW20 SW-20 M2400-20
In stock
Price Break
10+
CHF 0.43
20+
CHF 0.29
50+
CHF 0.18
100+
CHF 0.15
500+
CHF 0.09
1000+
CHF 0.08
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
Equivalent: DIN5417 DIN 5417 CFS20 CFS-20 2400-20 SW20 SW-20 M2400-20
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18.7mm
- Shaft Size:
- 20mm
Technical
Technical
| d1 | 20mm |
|---|---|
| s | 1.2mm (Tolerance -0.1) |
| b | 1.75mm (Tolerance -0.1) |
| d3 max. | 18.7mm |
| d2 | 19.2mm (Tolerance - 0.13) |
| m min. | 1.3mm |
| FN | 4.1 kN |
| FR | 15 kN |
| n det x1000 | 26 rpm |
