• SW43 Snap Ring to Suit 43mm Shaft
1 1

SKU: SW43-M2400

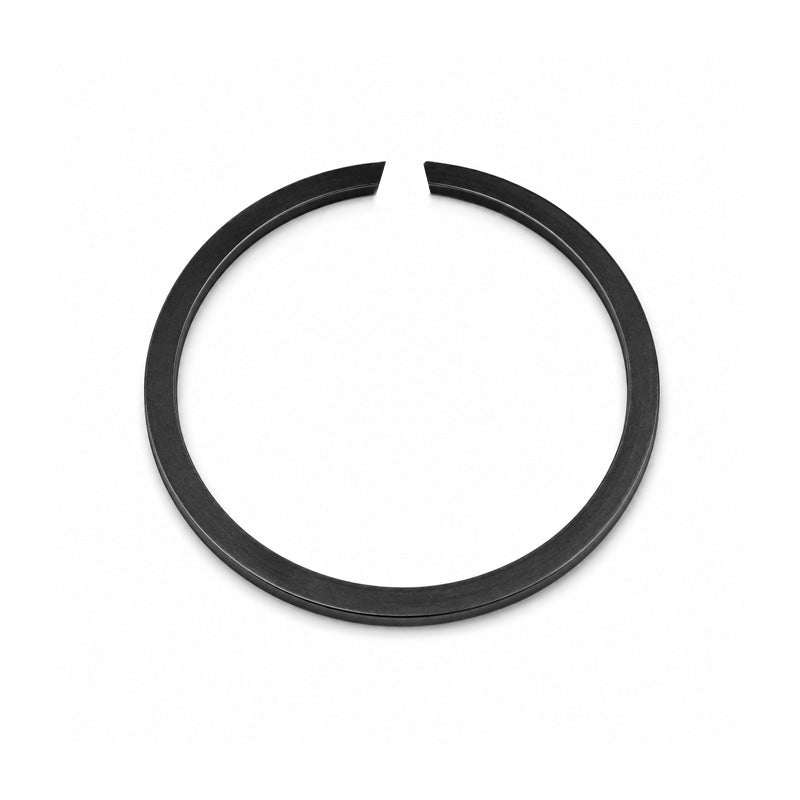

SW43 Snap Ring to Suit 43mm Shaft

SW43 Snap Ring to Suit 43mm Shaft
CHF 1.00 ex VAT
CHF 1.00 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS43 CFS-43 2400-43 SW43 SW-43 M2400-43

In stock

Price Break
10+ CHF 0.47
20+ CHF 0.36
50+ CHF 0.26
100+ CHF 0.21
500+ CHF 0.17
1000+ CHF 0.13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS43 CFS-43 2400-43 SW43 SW-43 M2400-43
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
40.8mm
Shaft Size:
43mm
Technical
d1 43mm
s 1.5mm (Tolerance -0.1)
b 2.3mm (Tolerance -0.1)
d3 max. 40.8mm
d2 41.5mm (Tolerance - 0.16)
m min. 1.6mm
FN 16.5 kN
FR 21.1 kN
n det x1000 7 rpm
