SKU: SW5-M2400

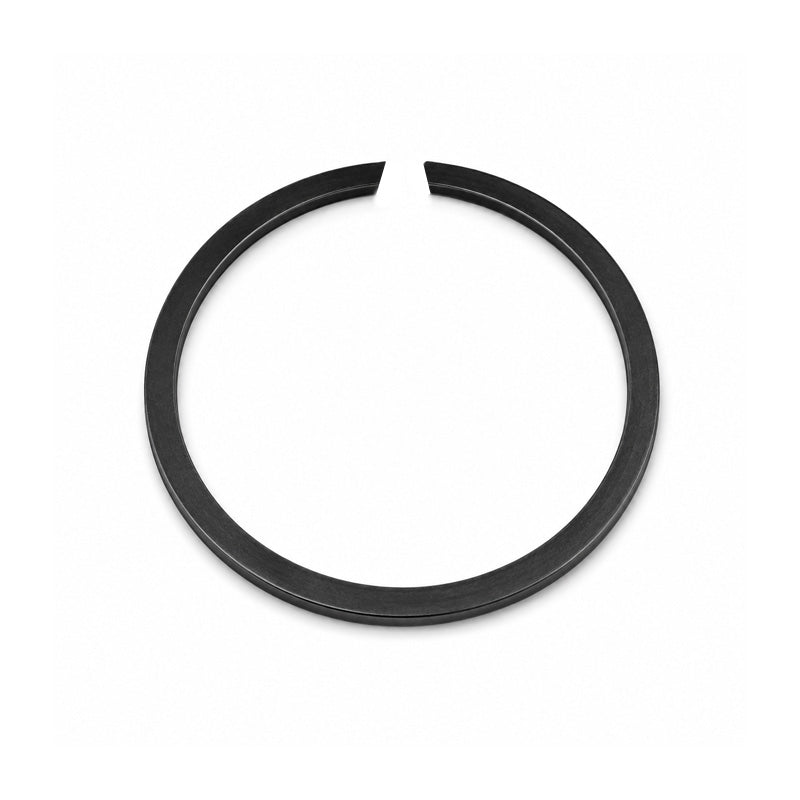

SW5 Snap Ring to Suit 5mm Shaft

Name: SW5 Snap Ring to Suit 5mm Shaft
Brand: Major Brand
SKU: SW5-M2400
Price: 1.00 CHF
Availability: InStock

CHF 1.00 ex VAT

Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS5 CFS-5 2400-5 SW5 SW-5 M2400-5

In stock

Price Break

10+ CHF 0.43

20+ CHF 0.29

50+ CHF 0.18

100+ CHF 0.13

500+ CHF 0.07

1000+ CHF 0.05

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52

Equivalent: DIN5417 DIN 5417 CFS5 CFS-5 2400-5 SW5 SW-5 M2400-5

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 4.7mm
Shaft Size:: 5mm

Technical

d1	5mm
s	0.5mm (Tolerance -0.1)
b	1mm (Tolerance -0.1)
d3 max.	4.7mm
d2	4.8mm (Tolerance - 0.09)
m min.	0.6mm
FN	0.26 kN
FR	1.3 kN
n det x1000	192 rpm
