SKU: SY1.1/4TF/VA201-SKF

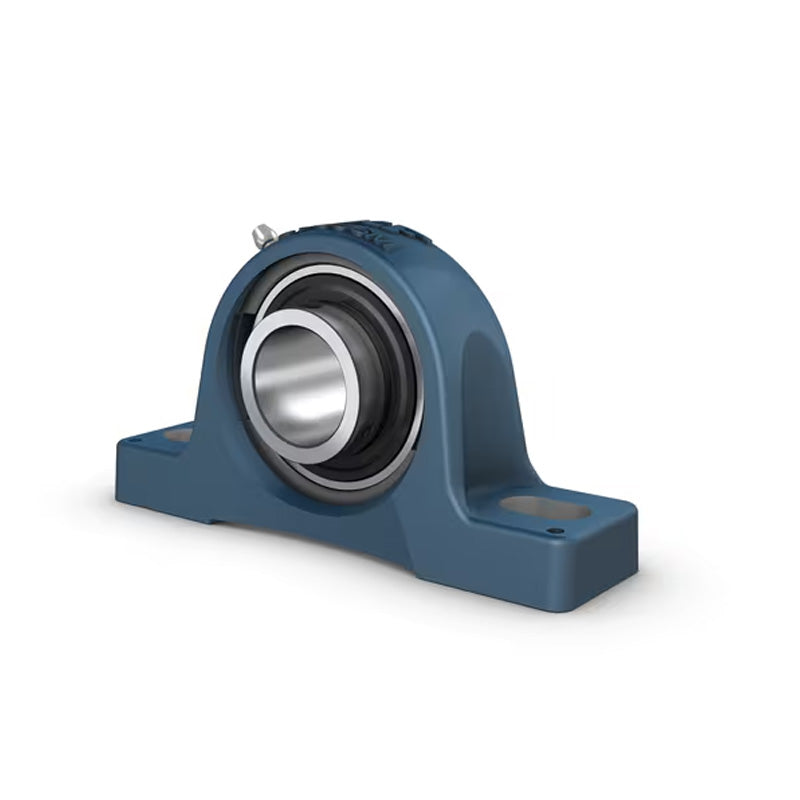

SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch

Name: SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
Brand: SKF
SKU: SY1.1/4TF/VA201-SKF
Price: 239.00 CHF
Availability: InStock

CHF 239.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 189.69

19+ CHF 179.03

29+ CHF 176.90

39+ CHF 174.77

49+ CHF 172.64

74+ CHF 170.51

99+ CHF 159.85

199+ CHF 157.72

249+ CHF 155.59

499+ CHF 153.46

999+ CHF 149.19

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Temperature Range:: High Temp

Technical

d	1-1/4 inch
A	45mm
B	42.9mm
H	93mm
H1	47.6mm
H2	19mm
J	126mm
L	160mm
N	21mm
N1	14mm
G	12mm
S1	25.4mm
Dynamic load C	25.5 kN
Static load Co	15.3 kN
Weight	1.57 kg
