SKU: SY20FM-SKF

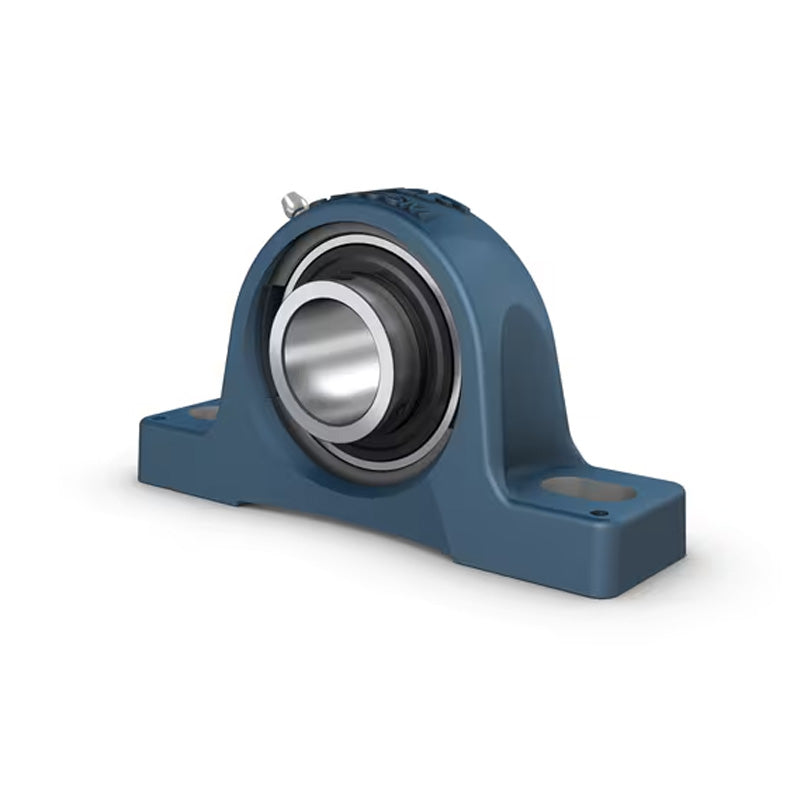

SKF SY20FM Cast Iron Plummer Block with Eccentric Locking Collar Insert 20mm
SKF SY20FM Cast Iron Plummer Block with Eccentric Locking Collar Insert 20mm
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.11
20+
CHF 36.92
30+
CHF 36.48
40+
CHF 36.04
50+
CHF 35.60
75+
CHF 35.16
100+
CHF 32.96
200+
CHF 32.52
250+
CHF 32.08
500+
CHF 31.64
1000+
CHF 30.76
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- SY
- Bolt Hole Centres:
- 97mm
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B1 | 31mm |
| H | 65mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| s1 | 23.5mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.59 kg |
| Housing | SY504M |
| Insert | YET204 |
| Compatible end cover closed | ECY204 |
