SKU: SY30TR-SKF
SKF SY30TR Cast Iron Plummer Block with Grub Screw Insert 30mm Bore
SKF SY30TR Cast Iron Plummer Block with Grub Screw Insert 30mm Bore
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
10+
CHF 50.57
20+
CHF 47.73
30+
CHF 47.16
40+
CHF 46.59
50+
CHF 46.02
75+
CHF 45.45
100+
CHF 42.61
200+
CHF 42.04
250+
CHF 41.48
500+
CHF 40.91
1000+
CHF 39.77
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SY
- Bolt Hole Centres:
- 117.5mm

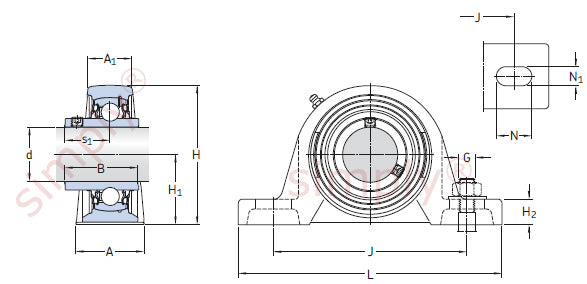

Technical
Technical
| d | 30mm |
|---|---|
| A | 40mm |
| A1 | 25mm |
| B | 38.1mm |
| H | 82.5mm |
| H1 | 42.9mm |
| H2 | 17mm |
| J | 117.5mm |
| L | 152mm |
| N | 23.5mm |
| N1 | 14mm |
| G | 12mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 20mm |
| Weight | 1.1 kg |
| Housing | SY506M |
| Insert | YAR206-2RF |
| Compatible end cover closed | ECY206 |
