SKU: SY35TF/VA201-SKF

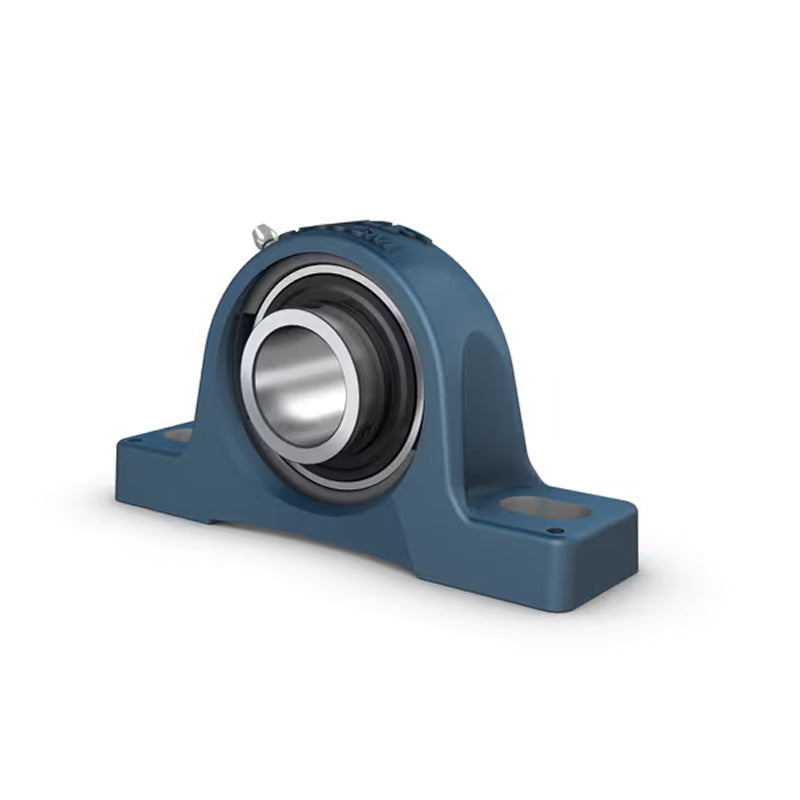

SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm

Name: SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm
Brand: SKF
SKU: SY35TF/VA201-SKF
Price: 252.00 CHF
Availability: InStock

CHF 252.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 200.45

19+ CHF 189.19

29+ CHF 186.94

39+ CHF 184.69

49+ CHF 182.43

74+ CHF 180.18

99+ CHF 168.92

199+ CHF 166.67

249+ CHF 164.42

499+ CHF 162.16

999+ CHF 157.66

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Temperature Range:: High Temp

Technical

d	35mm
A	45mm
B	42.9mm
H	93mm
H1	47.6mm
H2	19mm
J	126mm
L	160mm
N	21mm
N1	14mm
G	12mm
S1	25.4mm
Dynamic load C	25.5 kN
Static load Co	15.3 kN
Weight	1.46 kg
