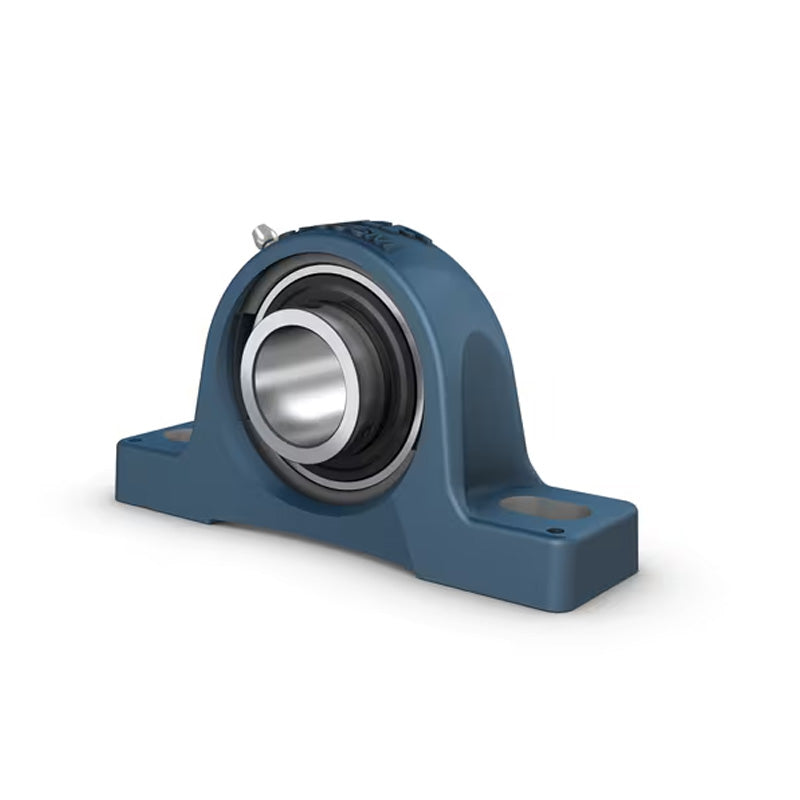

• SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
1 1

SKU: SY50TF/VA201-SKF

SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm

SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
CHF 334.00 ex VAT
CHF 334.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 265.69
19+ CHF 250.76
29+ CHF 247.78
39+ CHF 244.79
49+ CHF 241.81
74+ CHF 238.82
99+ CHF 223.90
199+ CHF 220.91
249+ CHF 217.93
499+ CHF 214.94
999+ CHF 208.97
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Temperature Range:
High Temp
Technical
d 50mm
A 54mm
B 51.6mm
H 114mm
H1 57.2mm
H2 22mm
J 157mm
L 203mm
N 26mm
N1 18mm
G 16mm
S1 32.6mm
Dynamic load C 35.1 kN
Static load Co 23.2 kN
Weight 2.69 kg
