SKU: SY55TF-SKF
SKF SY55TF Cast Iron Plummer Block with Grub Screw Insert 55mm Bore
SKF SY55TF Cast Iron Plummer Block with Grub Screw Insert 55mm Bore
Regular price
CHF 135.00
ex VAT
Regular price
Sale price
CHF 135.00
ex VAT
In stock
Price Break
10+
CHF 107.44
20+
CHF 101.40
30+
CHF 100.19
40+
CHF 98.99
50+
CHF 97.78
75+
CHF 96.57
100+
CHF 90.54
200+
CHF 89.33
250+
CHF 88.12
500+
CHF 86.91
1000+
CHF 84.50
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- SY
- Bolt Hole Centres:
- 171.5mm

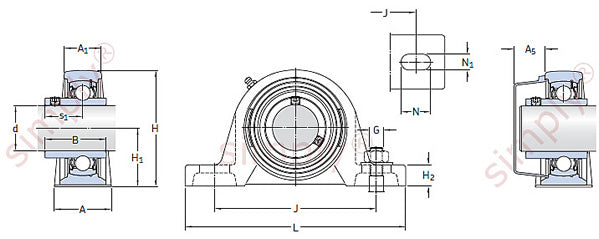

Technical
Technical
| d | 55mm |
|---|---|
| A | 60mm |
| A1 | 40mm |
| B | 55.6mm |
| H | 126mm |
| H1 | 63.5mm |
| H2 | 24mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| s1 | 33.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| A5 | 34mm |
| Weight | 3.6 kg |
| Housing | SY511M |
| Insert | YAR211-2F |
| Compatible end cover closed | ECY211 |
