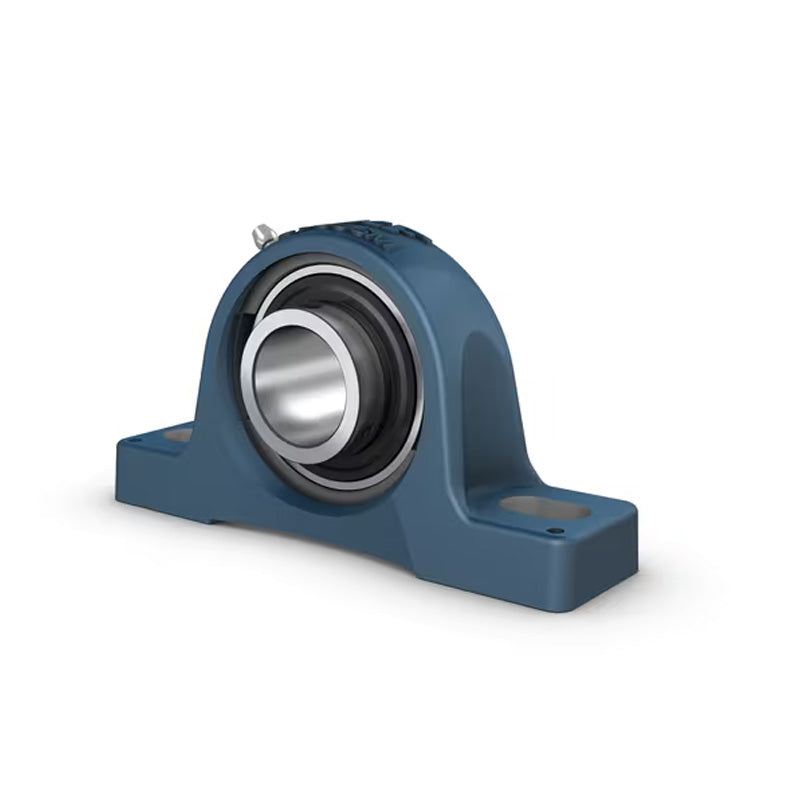

SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm

Name: SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm
Brand: SKF
SKU: SY55TF/VA201-SKF
Price: 373.00 CHF
Availability: InStock

CHF 373.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 297.31

19+ CHF 280.60

29+ CHF 277.26

39+ CHF 273.92

49+ CHF 270.58

74+ CHF 267.24

99+ CHF 250.54

199+ CHF 247.20

249+ CHF 243.86

499+ CHF 240.52

999+ CHF 233.84

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Temperature Range:: High Temp

Technical

d	55mm
A	60mm
B	55.6mm
H	127mm
H1	63.5mm
H2	23.8mm
J	171.5mm
L	219mm
N	27.5mm
N1	18mm
G	16mm
S1	33.4mm
Dynamic load C	43.6 kN
Static load Co	29 kN
Weight	3.59 kg
