SKU: SY60TF/VA201-SKF

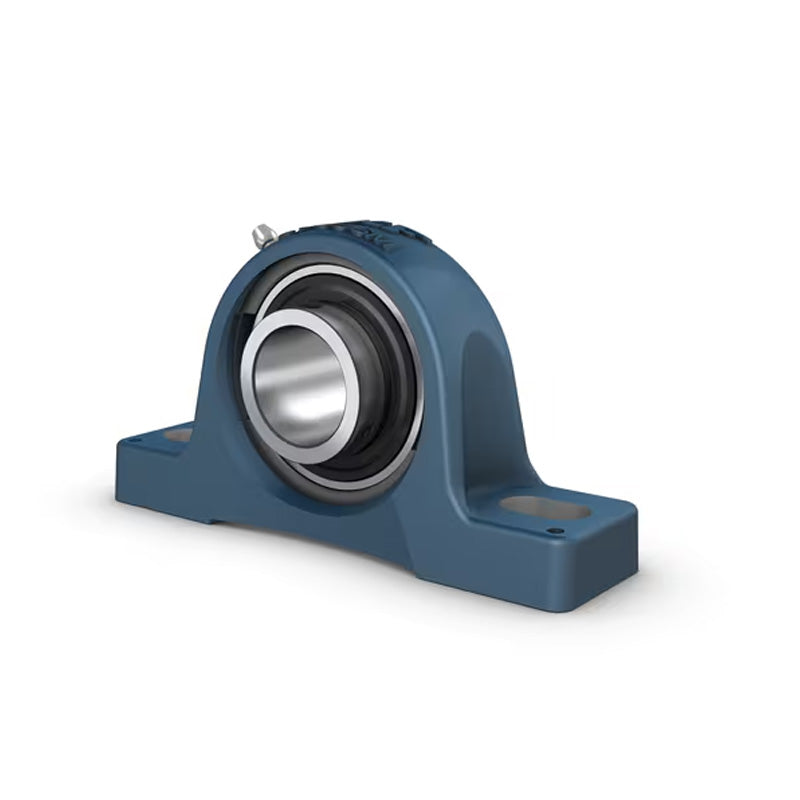

SKF SY60TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 60mm

Name: SKF SY60TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 60mm
Brand: SKF
SKU: SY60TF/VA201-SKF
Price: 427.00 CHF
Availability: InStock

CHF 427.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 339.74

19+ CHF 320.65

29+ CHF 316.83

39+ CHF 313.02

49+ CHF 309.20

74+ CHF 305.38

99+ CHF 286.29

199+ CHF 282.48

249+ CHF 278.66

499+ CHF 274.84

999+ CHF 267.21

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 60mm
Temperature Range:: High Temp

Technical

d	60mm
A	60mm
B	65.1mm
H	139.7mm
H1	69.9mm
H2	26mm
J	190.5mm
L	240mm
N	29mm
N1	18mm
G	16mm
S1	39.7mm
Dynamic load C	52.7 kN
Static load Co	36 kN
Weight	4.5 kg
