SKF SYF20TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 20mm
SKF SYF20TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 20mm
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
10+
CHF 25.63
20+
CHF 24.19
30+
CHF 23.90
40+
CHF 23.62
50+
CHF 23.33
75+
CHF 23.04
100+
CHF 21.60
200+
CHF 21.31
250+
CHF 21.02
500+
CHF 20.74
1000+
CHF 20.16
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- SYF
- Bolt Hole Centres:
- 50.8mm
Technical
Technical

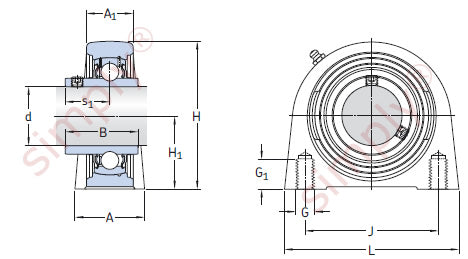

| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B | 31mm |
| H | 65mm |
| H1 | 33.3mm |
| J | 50.8mm |
| L | 65mm |
| G | M8 |
| G1 | 14mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.43 kg |
| Housing | SYF504 |
| Insert | YAR204-2F |
