SKU: SYF25FM-SKF

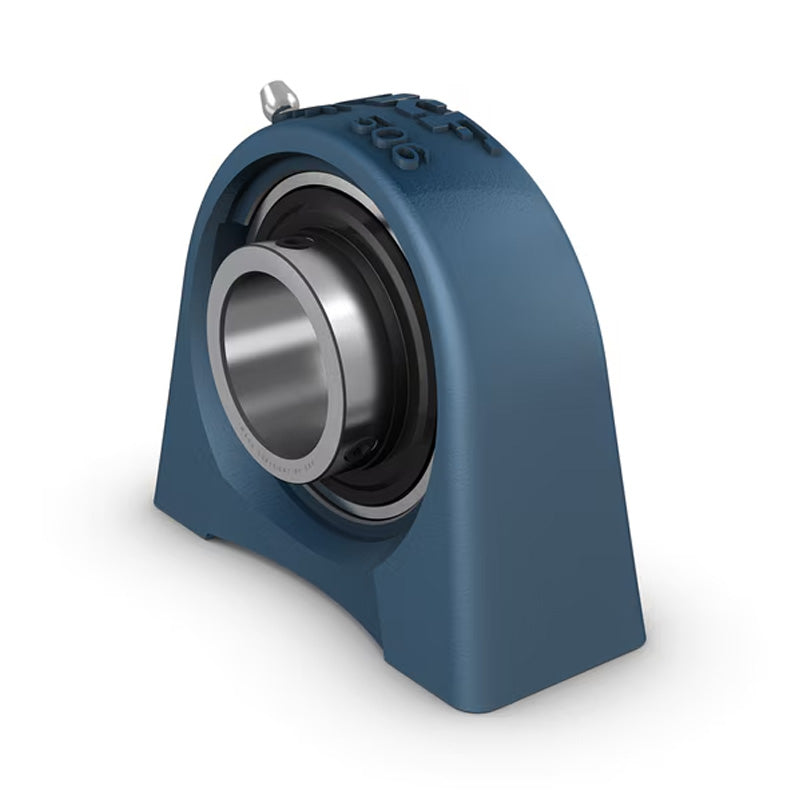

SKF SYF25FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 25mm Insert
SKF SYF25FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 25mm Insert
Regular price
CHF 67.00
ex VAT
Regular price
Sale price
CHF 67.00
ex VAT
In stock
Price Break
10+
CHF 52.63
20+
CHF 49.67
30+
CHF 49.08
40+
CHF 48.49
50+
CHF 47.89
75+
CHF 47.30
100+
CHF 44.35
200+
CHF 43.76
250+
CHF 43.16
500+
CHF 42.57
1000+
CHF 41.39
Description
Description
|
SKF Y-bearing Plummer Block Units with a Shortened Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- SYF
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| d | 25mm |
|---|---|
| A | 36mm |
| A1 | 22mm |
| B1 | 31mm |
| H | 70.5mm |
| H1 | 36.5mm |
| J | 50.8mm |
| L | 70mm |
| G | M10 |
| G1 | 15mm |
| s1 | 23.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.52 kg |
| Housing | SYF505 |
| Insert | YET205 |
