SKU: SYF45FM-SKF
SKF SYF45FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 45mm Insert
SKF SYF45FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 45mm Insert
Regular price
CHF 119.00
ex VAT
Regular price
Sale price
CHF 119.00
ex VAT
In stock
Price Break
10+
CHF 94.17
20+
CHF 88.88
30+
CHF 87.82
40+
CHF 86.76
50+
CHF 85.70
75+
CHF 84.65
100+
CHF 79.36
200+
CHF 78.30
250+
CHF 77.24
500+
CHF 76.18
1000+
CHF 74.07
Description
Description
|
SKF Y-bearing Plummer Block Units with a Shortened Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SYF
- Bolt Hole Centres:
- 95.3mm

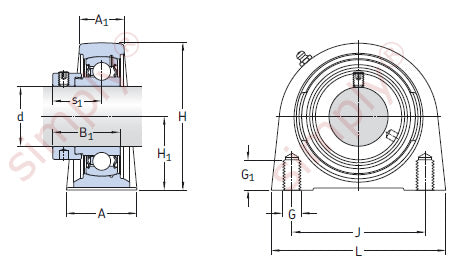

Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| A1 | 32mm |
| B1 | 43.7mm |
| H | 107.5mm |
| H1 | 54mm |
| J | 95.3mm |
| L | 120mm |
| G | M12 |
| G1 | 22mm |
| s1 | 32.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.8 kg |
| Housing | SYF509 |
| Insert | YET209 |
