SKU: SYFJ35TF-SKF

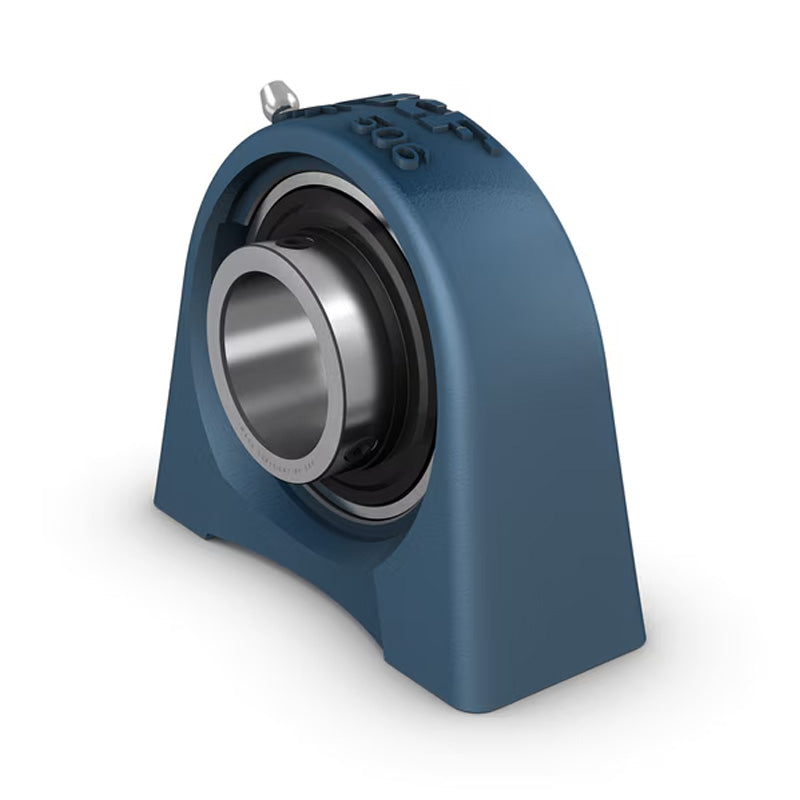

SKF SYFJ35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
SKF SYFJ35TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 35mm
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
10+
CHF 44.18
20+
CHF 41.70
30+
CHF 41.20
40+
CHF 40.70
50+
CHF 40.21
75+
CHF 39.71
100+
CHF 37.23
200+
CHF 36.73
250+
CHF 36.24
500+
CHF 35.74
1000+
CHF 34.75
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- SYFJ
- Bolt Hole Centres:
- 80mm

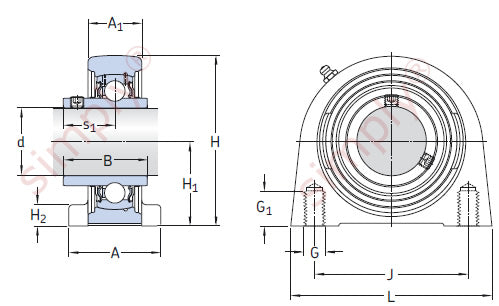

Technical
Technical
| d | 35mm |
|---|---|
| A | 48mm |
| A1 | 30.5mm |
| B | 42.3mm |
| H | 96mm |
| H1 | 47.6mm |
| H2 | 12mm |
| J | 80mm |
| L | 110mm |
| G | M14 |
| G1 | 20mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.4 kg |
| Housing | SYFJ507 |
| Insert | YAR207-2F |
