SKU: SYJ506-SKF

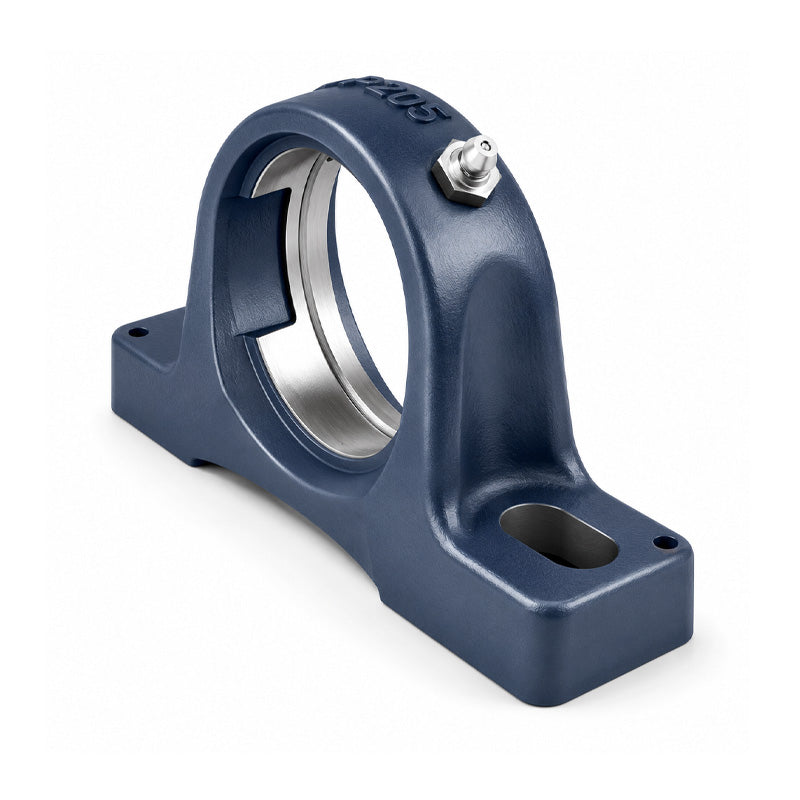

SKF SYJ506 Cast Iron Two Bolt Pillow / Plummer Block Housing Only
SKF SYJ506 Cast Iron Two Bolt Pillow / Plummer Block Housing Only
Regular price
CHF 16.81
ex VAT
Regular price
Sale price
CHF 16.81
ex VAT
In stock
Price Break
10+
CHF 14.96
19+
CHF 14.12
29+
CHF 13.95
39+
CHF 13.78
49+
CHF 13.62
74+
CHF 13.45
99+
CHF 12.61
199+
CHF 12.44
249+
CHF 12.27
499+
CHF 12.10
999+
CHF 11.77
Couldn't load pickup availability
Description
Description
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing.
Benefits: Grease fitting allows re-lubrication
Note: This Housing unit does not inlcude an insert
Benefits: Grease fitting allows re-lubrication
Note: This Housing unit does not inlcude an insert
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 62mm
- Style:
- SYJ
- Bolt Hole Centres:
- 118mm
Technical
Technical
| Da | 62mm |
|---|---|
| A | 42mm |
| A1 | 27mm |
| H | 42.9mm |
| H1 | 16mm |
| H2 | 82mm |
| J | 118mm |
| J Max | 125mm |
| J Min | 111mm |
| L | 165mm |
| N | 17mm |
| N1 | 24mm |
| RG | 1/4-28 UNF |
| R1 | 3mm |
| Ra | 45 degrees |
| Dn | 6.5mm |
| SWn | 7mm |
| GN | 1/4-28 SAE-LT |
| J6 | 155mm |
| J7 | 15mm |
| N4 | 4mm |
