SKU: SYK30TR-SKF

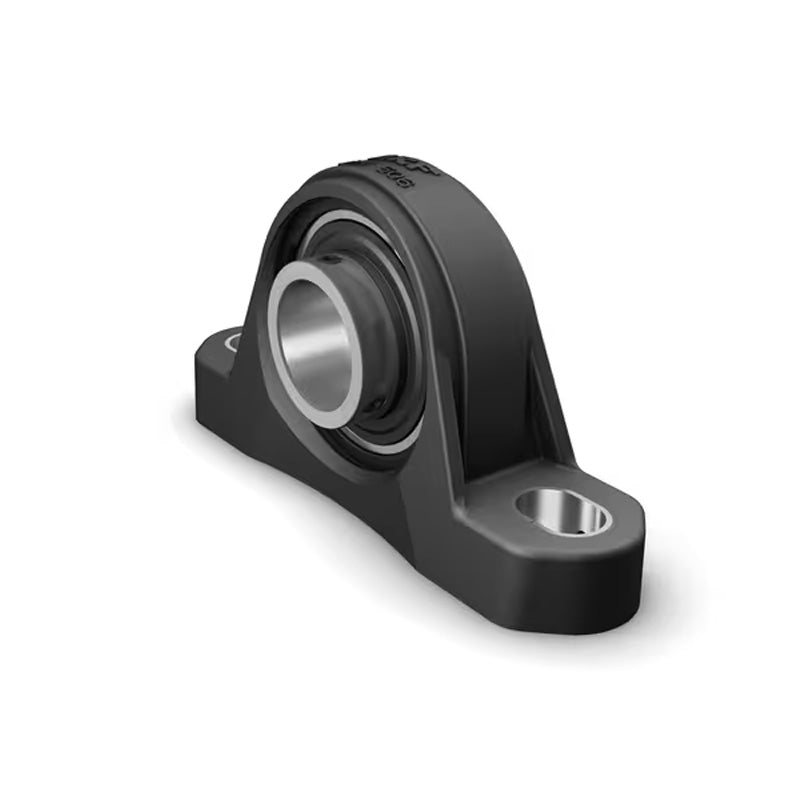

SKF SYK30TR Grub Screw Type Composite Plummer Block 30mm Bore
SKF SYK30TR Grub Screw Type Composite Plummer Block 30mm Bore
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
10+
CHF 50.30
20+
CHF 47.48
30+
CHF 46.91
40+
CHF 46.35
50+
CHF 45.78
75+
CHF 45.22
100+
CHF 42.39
200+
CHF 41.83
250+
CHF 41.26
500+
CHF 40.70
1000+
CHF 39.56
Description
Description
|
SKF Y-TECH SYK series Plummer Block Units: These plummer block units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. These units are fitted with Y-bearings in the YAR 2-2F or YAR 2-2RF series and are attached to the shaft with grub screws. The TF denomination is supplied with the YAR 2-2F series inserts, these have a single seal. The TR are supplied with YAR 2-2RF series inserts and have a double wash down seal. SKF 2RF bearing seals provide an innovative, effective, proven multi-barrier design that prevents contamination and retains lubrication. During high-pressure wash downs, 2RF seals keep water and detergents out of seal contact areas. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SYK
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 30mm |
|---|---|
| A | 40mm |
| A1 | 25mm |
| B | 38.1mm |
| H | 82mm |
| H1 | 42.9mm |
| H2 | 19mm |
| J | 121mm |
| L | 159mm |
| N | 21.5mm |
| N1 | 14.5mm |
| G | 12mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 20mm |
| Weight | 0.49 kg |
| Housing | SYK506 |
| Insert | YAR206-2RF |
| Compatible end cover closed | ECY206 |
