SKU: SYM3.TF-SKF

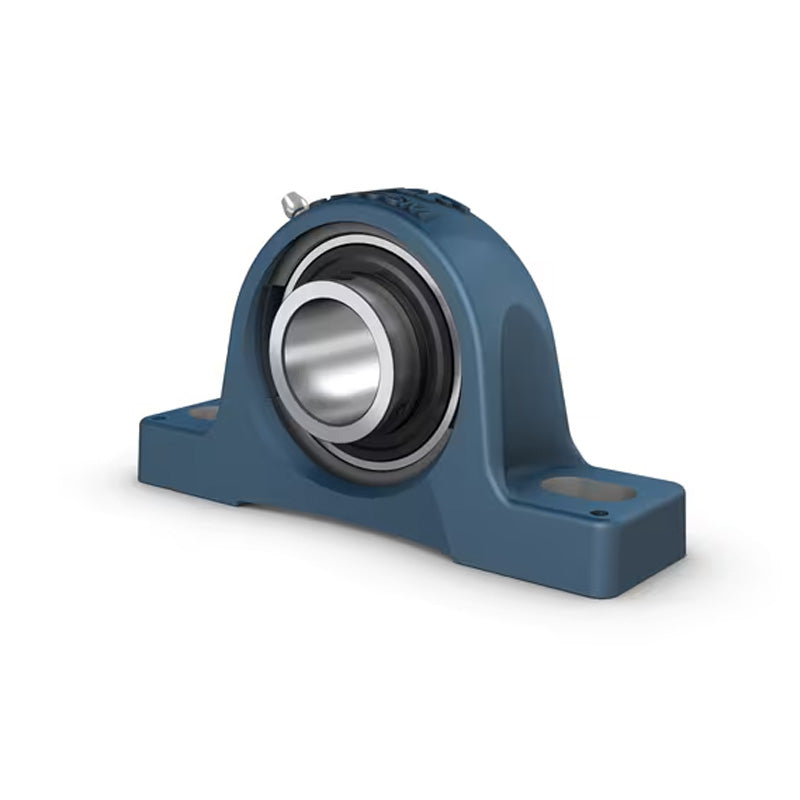

SKF SYM3TF Cast Iron Plummer Block with Grub Screw Insert 3 inch Bore
SKF SYM3TF Cast Iron Plummer Block with Grub Screw Insert 3 inch Bore
Regular price
CHF 322.71
ex VAT
Regular price
Sale price
CHF 322.71
ex VAT
In stock
Price Break
10+
CHF 287.21
19+
CHF 271.08
29+
CHF 267.85
39+
CHF 264.62
49+
CHF 261.40
74+
CHF 258.17
99+
CHF 242.03
199+
CHF 238.81
249+
CHF 235.58
499+
CHF 232.35
999+
CHF 225.90
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- SYM
- Bolt Hole Centres:
- 228.6mm
Technical
Technical
| d | 3 inch |
|---|---|
| A | 78mm |
| A1 | 52mm |
| B | 77.9mm |
| H | 177mm |
| H1 | 88.9mm |
| H2 | 47.6mm |
| J | 228.6mm |
| L | 305mm |
| N | 35mm |
| N1 | 22.2mm |
| G | 20mm |
| s1 | 47.7mm |
| Static load Cr | 53 kN |
| Dynamic load Cor | 72.8 kN |
| Fatigue load limit Pu | 2.16 kN |
| Limiting speed | 2400 rpm |
| Weight | 10.2 kg |
