SKU: T4CB100/Q-SKF

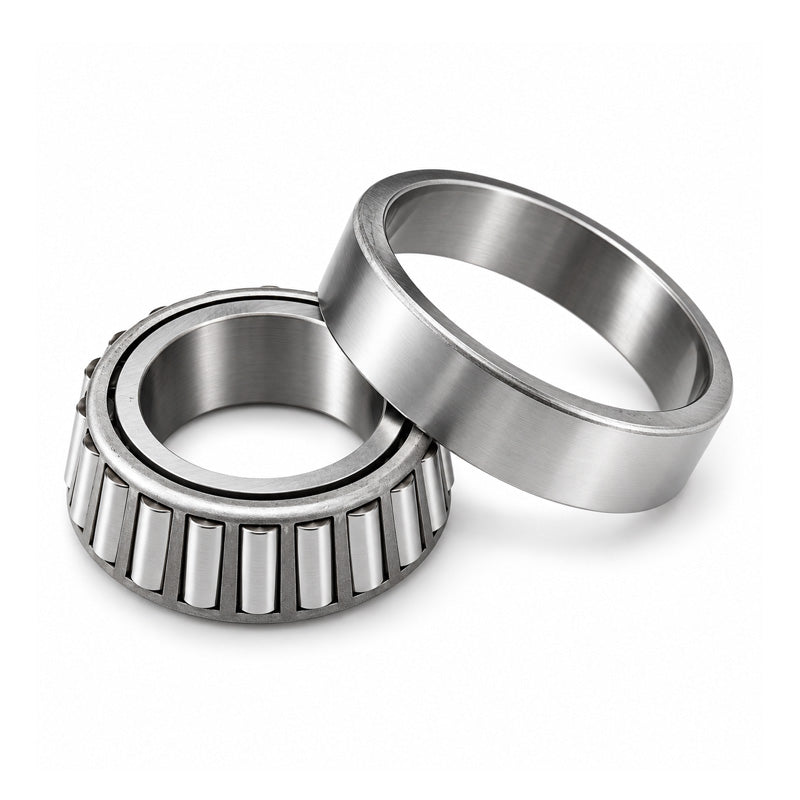

SKF T4CB100Q Metric Single Row Taper Roller Bearing 100x145x24mm
SKF T4CB100Q Metric Single Row Taper Roller Bearing 100x145x24mm
Regular price
CHF 242.00
ex VAT
Regular price
Sale price
CHF 242.00
ex VAT
In stock
Price Break
10+
CHF 192.81
19+
CHF 181.98
29+
CHF 179.81
39+
CHF 177.64
49+
CHF 175.48
74+
CHF 173.31
99+
CHF 162.48
199+
CHF 160.31
249+
CHF 158.15
499+
CHF 155.98
999+
CHF 151.65
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- None
Technical
Technical
| d | 100mm |
|---|---|
| D | 145mm |
| T | 24mm |
| Dynamic load | 125 kN |
| Static load | 190 kN |
| Fatigue load limit Pu | 20.8 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 4500 rpm |
| Weight | 1.15 kg |
| d1 | 121mm |
| B | 22.5mm |
| C | 17.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| a | 30mm |
| da max | 109mm |
| db min | 112mm |
| Da min | 133mm |
| Da max | 131mm |
| Db min | 140mm |
| Ca min | 4mm |
| Cb min | 6.5mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| Calculation factor e | 0.48 |
| Calculation factor Y | 1.25 |
| Calculation factor Y0 | 0.7 |
