SKU: TA.1620.Z

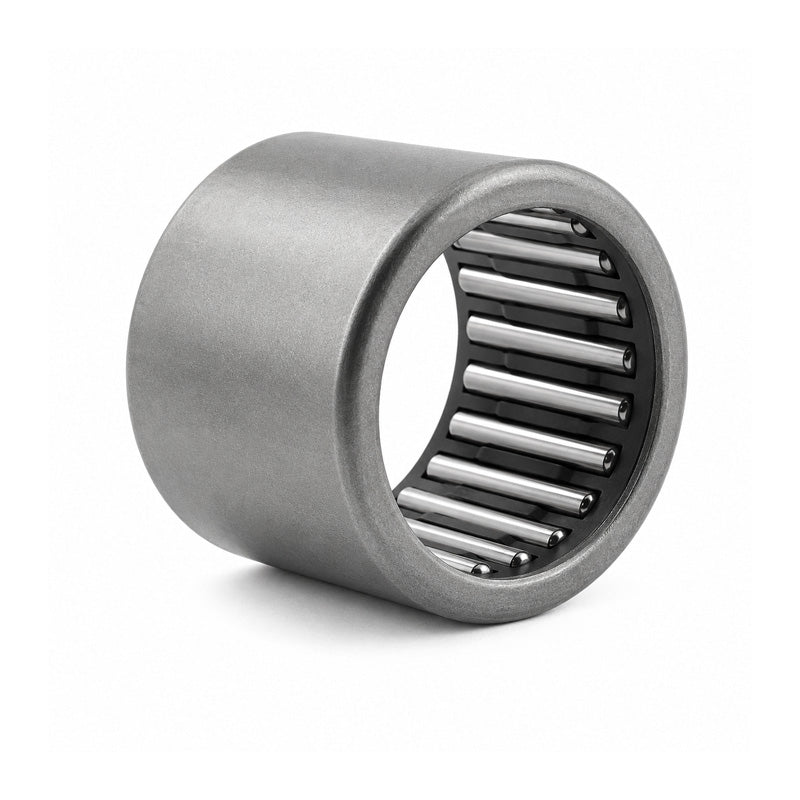

IKO TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
IKO TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
Regular price
CHF 12.81
ex VAT
Regular price
Sale price
CHF 12.81
ex VAT
Equivalent to: HMK1620
In stock
Price Break
10+
CHF 11.40
19+
CHF 10.76
29+
CHF 10.63
39+
CHF 10.50
49+
CHF 10.38
74+
CHF 10.25
99+
CHF 9.61
199+
CHF 9.48
249+
CHF 9.35
499+
CHF 9.22
999+
CHF 8.97
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1620
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 20mm |
| Dynamic load | 14700 N |
| Static load | 19100 N |
| Inner race | IRT1220-1 |
| Weight | 25 g |
