SKU: TA.3220.Z

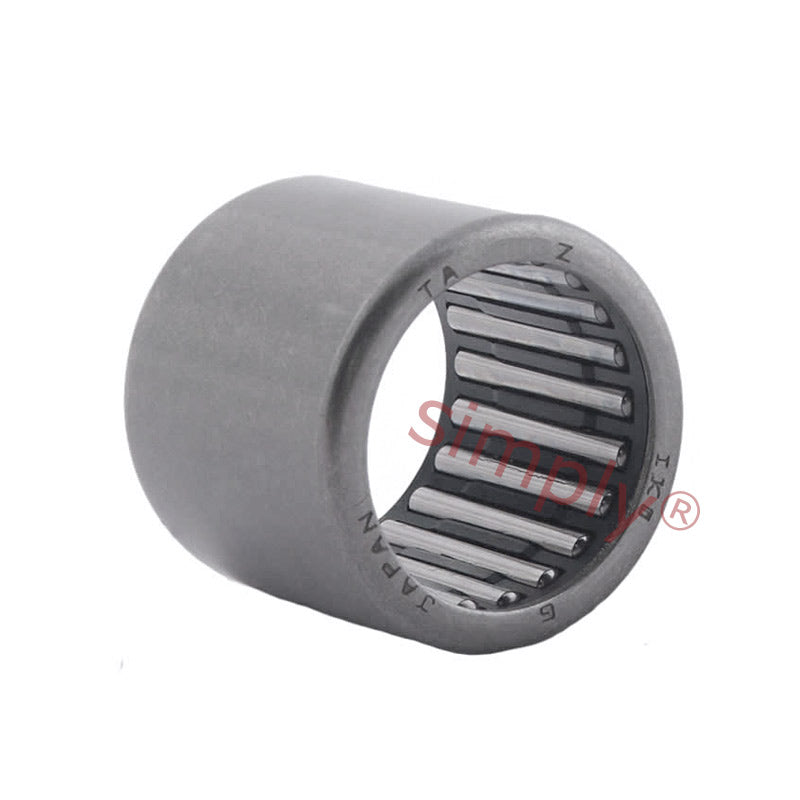

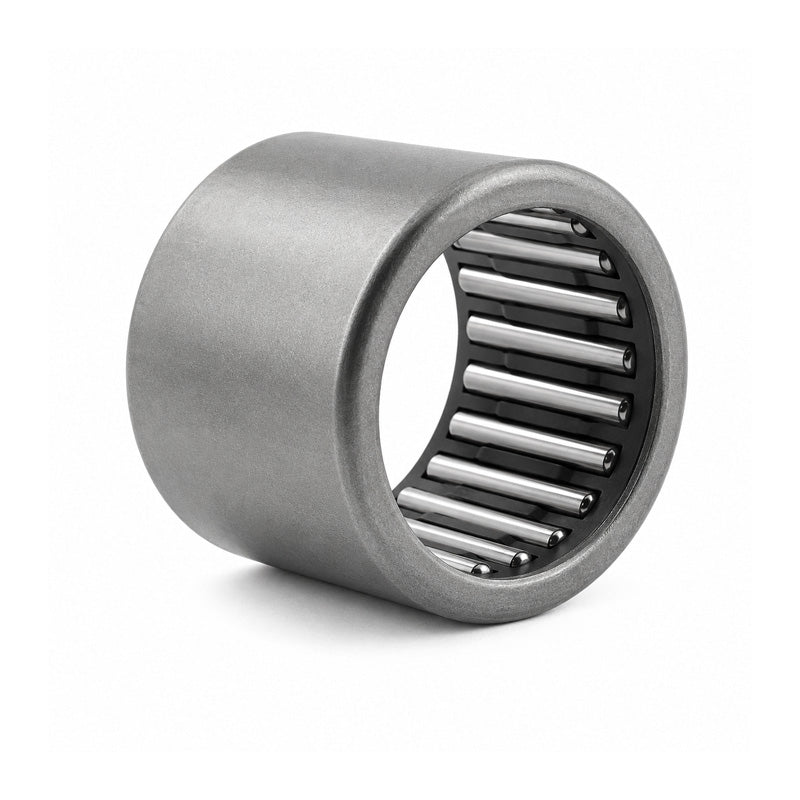

IKO TA3220Z Needle Roller Bearing Open End Type 32x42x20mm
IKO TA3220Z Needle Roller Bearing Open End Type 32x42x20mm
Regular price
CHF 9.11
ex VAT
Regular price
Sale price
CHF 9.11
ex VAT
Equivalent to: HMK3220
In stock
Price Break
10+
CHF 8.11
19+
CHF 7.65
29+
CHF 7.56
39+
CHF 7.47
49+
CHF 7.38
74+
CHF 7.29
99+
CHF 6.83
199+
CHF 6.74
249+
CHF 6.65
499+
CHF 6.56
999+
CHF 6.38
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3220
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 32mm |
|---|---|
| D | 42mm |
| C | 20mm |
| Dynamic load | 25400 N |
| Static load | 38600 N |
| Inner race | IRT2820 |
| Weight | 57.5 g |
