SKU: TA.5025.Z-EU

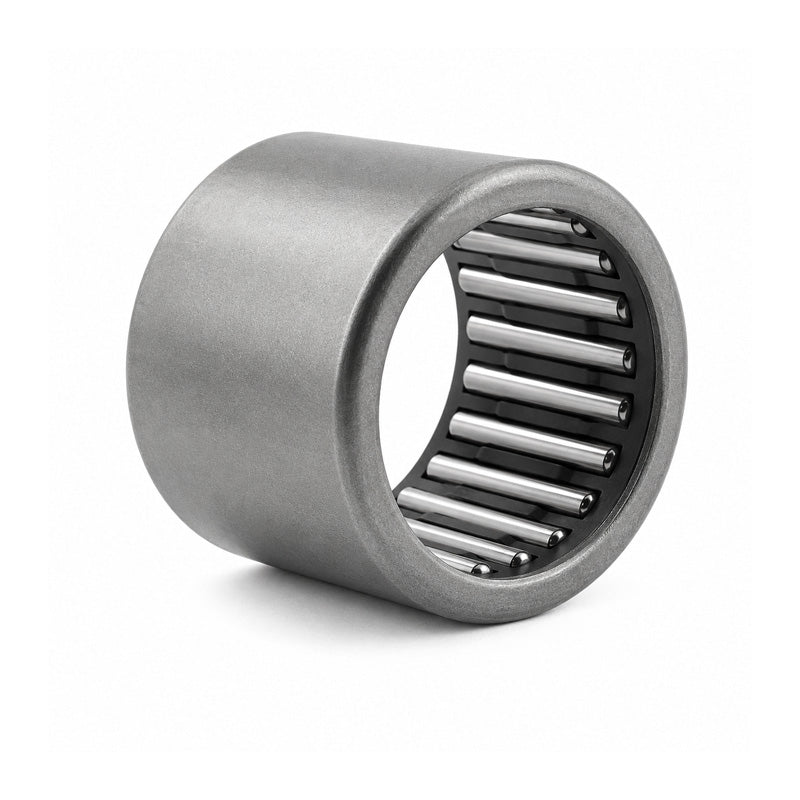

Premier Budget TA5025Z Needle Roller Bearing Open End Type 50x62x25mm
Premier Budget TA5025Z Needle Roller Bearing Open End Type 50x62x25mm
Regular price
CHF 11.74
ex VAT
Regular price
Sale price
CHF 11.74
ex VAT
Equivalent to: HMK5025
In stock
Price Break
10+
CHF 10.45
19+
CHF 9.86
29+
CHF 9.74
39+
CHF 9.63
49+
CHF 9.51
74+
CHF 9.39
99+
CHF 8.81
199+
CHF 8.69
249+
CHF 8.57
499+
CHF 8.45
999+
CHF 8.22
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK5025
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 25mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 25mm |
| Dynamic load | 49100N |
| Static load | 89000N |
| Inner race | IRT4525 |
| Weight | 107g |
