SKU: TA.815.Z-EU

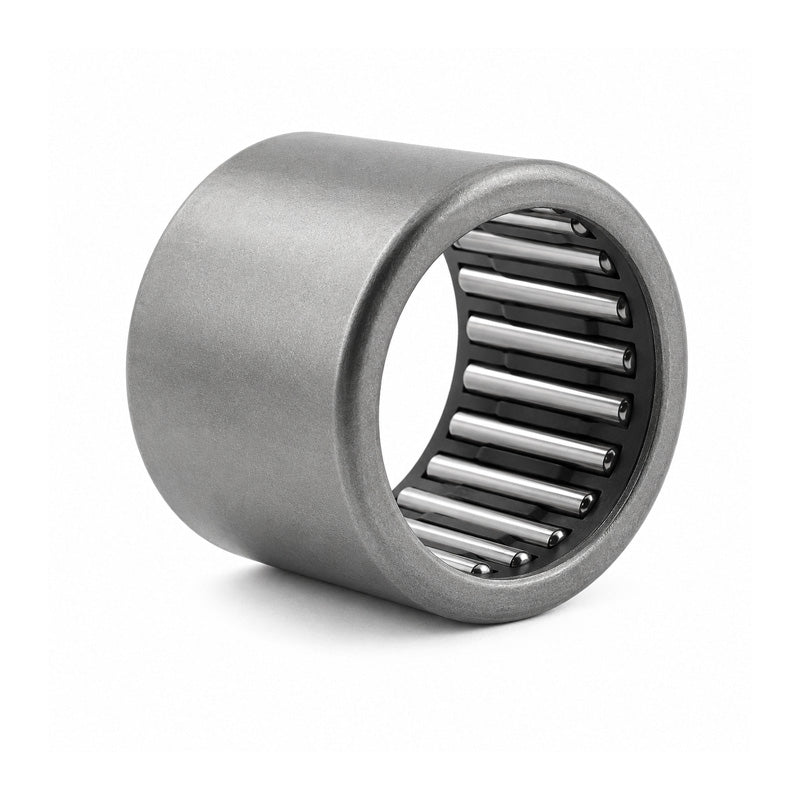

Premier Budget TA815Z Needle Roller Bearing Open End Type 8x15x15mm
Premier Budget TA815Z Needle Roller Bearing Open End Type 8x15x15mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: HMK0815 HMK815
In stock
Price Break
10+
CHF 6.85
19+
CHF 6.46
29+
CHF 6.39
39+
CHF 6.31
49+
CHF 6.23
74+
CHF 6.16
99+
CHF 5.77
199+
CHF 5.70
249+
CHF 5.62
499+
CHF 5.54
999+
CHF 5.39
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK0815 HMK815
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 15mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 15mm |
| Dynamic load | 5780N |
| Static load | 5570N |
| Weight | 9.7g |
