SKU: TASE55-XL-INA

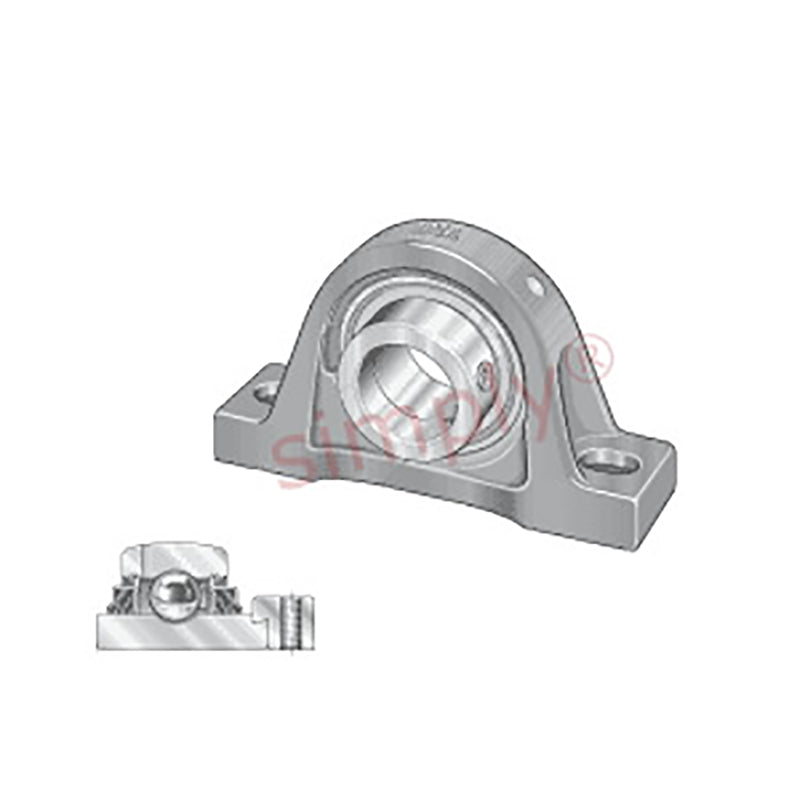

INA TASE55XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 55mm Bore
INA TASE55XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 55mm Bore
Regular price
CHF 151.00
ex VAT
Regular price
Sale price
CHF 151.00
ex VAT
In stock
Price Break
4+
CHF 119.55
9+
CHF 112.84
19+
CHF 111.49
29+
CHF 110.15
39+
CHF 108.81
49+
CHF 107.46
59+
CHF 100.75
69+
CHF 99.40
79+
CHF 98.06
89+
CHF 96.72
99+
CHF 94.03
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55mm
- Style:
- TASE
- Bolt Hole Centres:
- 176mm
Technical
Technical
| d | 55mm |
|---|---|
| L | 222mm |
| H2 | 124.5mm |
| A | 60mm |
| A1 | 35mm |
| B1 | 71.4mm76mm |
| H | 63.5mm |
| H1 | 22.5mm |
| J | 176mm |
| N | 18mm |
| N1 | 30mm |
| Q | M6 |
| S1 | 43.6mm |
| Mass | 3.51 kg |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 29000 N |
| Designation of housing | ASE11 |
| Designation of bearing | GE55-XL-KTT-B |
