SKU: TBS-DS-06B-18

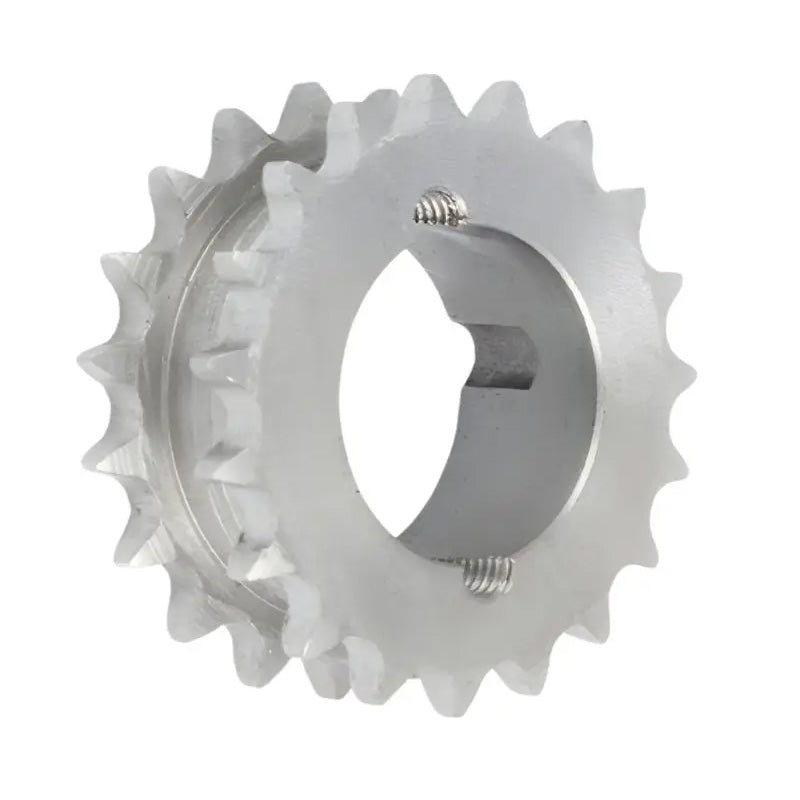

18 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
18 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
Regular price
CHF 8.63
ex VAT
Regular price
Sale price
CHF 8.63
ex VAT
Equivalent to: 671-001 DS06B1-18TB
In stock
Price Break
10+
CHF 7.68
19+
CHF 7.25
29+
CHF 7.16
39+
CHF 7.08
49+
CHF 6.99
74+
CHF 6.90
99+
CHF 6.47
199+
CHF 6.39
249+
CHF 6.30
499+
CHF 6.21
999+
CHF 6.04
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-001 DS06B1-18TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-001 DS06B1-18TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 18
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard

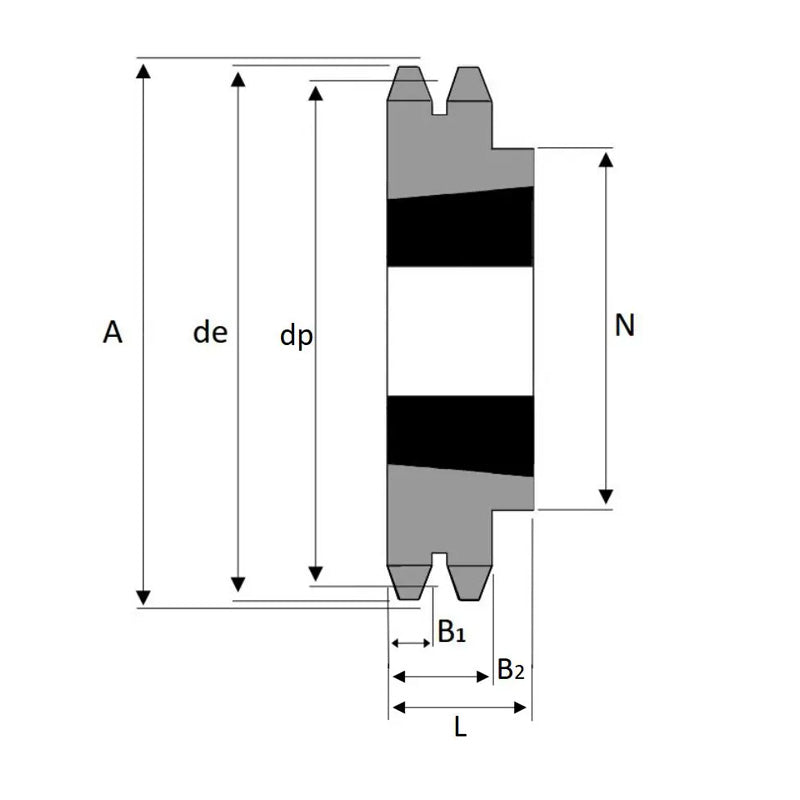

Technical
Technical
| No. of Teeth | 18 |
|---|---|
| Pitch Diameter dp | 54.85mm |
| Outer Diameter de | 58.3mm |
| Width B | 23.5mm |
| Hub Diameter N | 43mm |
| Chamfer C | 1mm |
| Tooth Radius r3 | 10mm |
| Tooth Width b1 | 5.3mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1008+taperlock">1008<span style="color:blue"> Click Here</span></a> |
| Weight | 0.133 kg |
