SKU: TBS-DS-08B-15
15 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
15 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
Regular price
CHF 20.19
ex VAT
Regular price
Sale price
CHF 20.19
ex VAT
Equivalent to: 671-007 DS08B1-15TB
In stock
Price Break
10+
CHF 17.97
19+
CHF 16.96
29+
CHF 16.76
39+
CHF 16.56
49+
CHF 16.35
74+
CHF 16.15
99+
CHF 15.14
199+
CHF 14.94
249+
CHF 14.74
499+
CHF 14.54
999+
CHF 14.13
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-007 DS08B1-15TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-007 DS08B1-15TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 15
- Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- BS European Standard
Technical
Technical

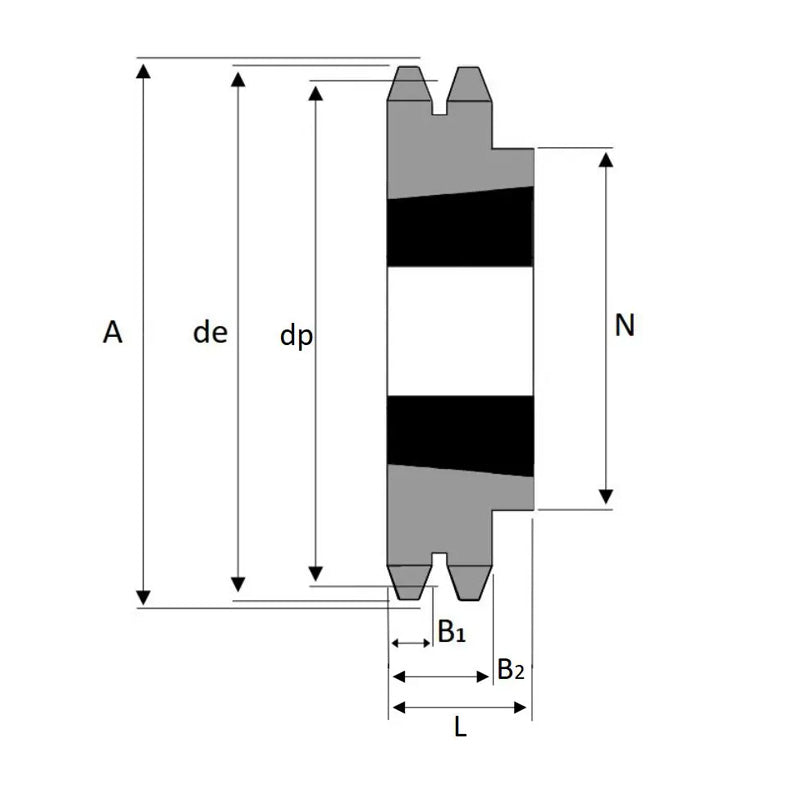

| No. of Teeth | 15 |
|---|---|
| Pitch Diameter dp | 61.09mm |
| Outer Diameter de | 65.5mm |
| Hub Diameter N | 45mm |
| Width B | 31mm |
| Chamfer C | 1.3mm |
| Tooth Radius r3 | 13mm |
| Tooth Width b1 | 7.2mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1008+taperlock">1008<span style="color:blue"> Click Here</span></a> |
| Weight | 0.252 kg |
